BLU-JET AT6020 - Page 57

55
AT6020
66000105 Dual Wheel Lift

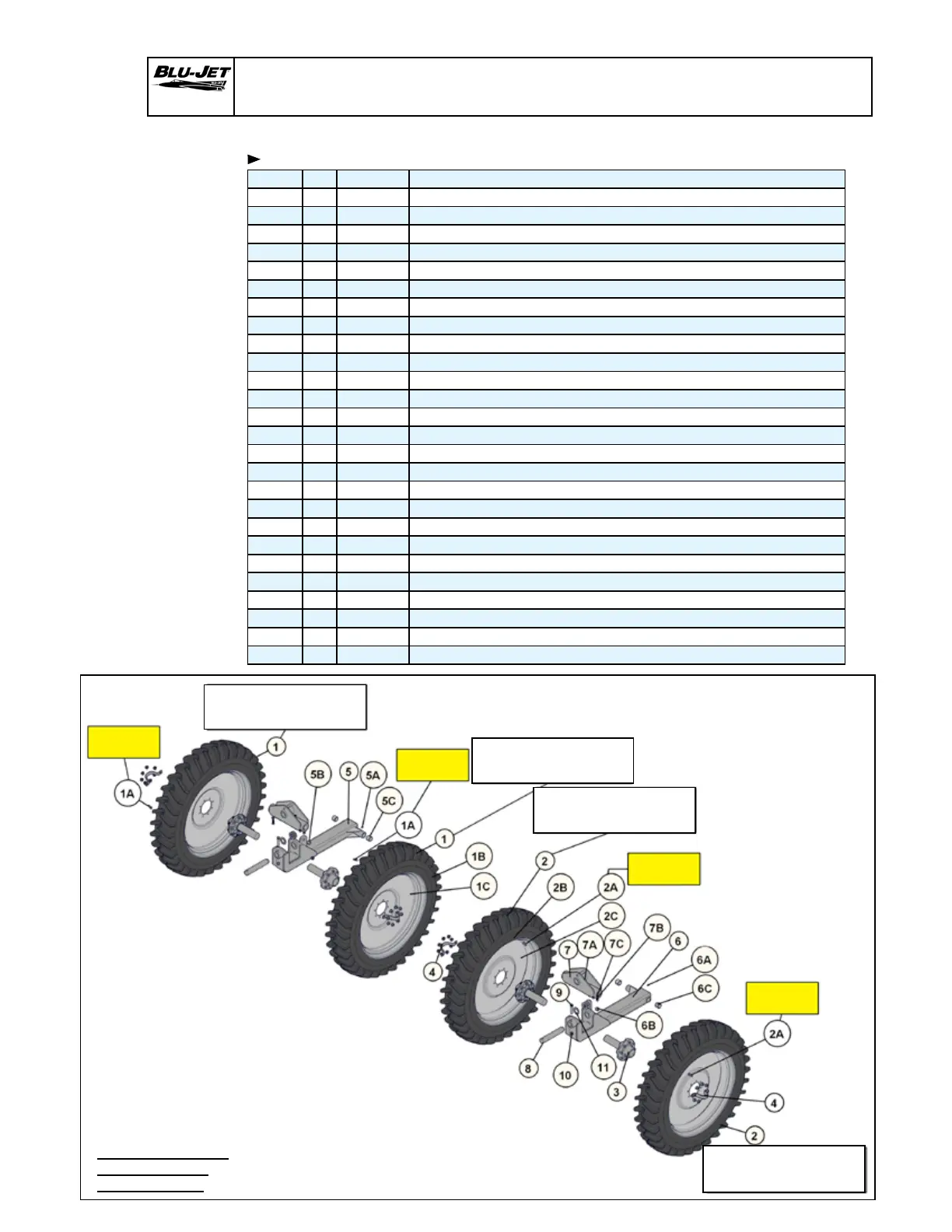

Dual Wheel Lift Bundle 66000105 (30” Row Spacing)
BOM ID Qty Item No Description
1 2 AAM2914 WHEEL, 12.4 X 38, 14 PLY 38 X 10 X 8, LEFT HAND ASSEMBLY
1A 2 AP2790 VALVE STEM, METAL
1B 2 AP2867 TIRE, 12.4 X 38, 14 PLY, TRACTION GRIP
1C 2 AP3204 RIM, 38 X 10 X 8, GRAY
2 2 AAM2915 WHEEL, 12.4 X 38, 14 PLY 38 X 10 X 8, RIGHT HAND ASSEMBLY
2A 2 AP2790 VALVE STEM, METAL
2B 2 AP2867 TIRE, 12.4 X 38, 14 PLY, TRACTION GRIP
2C 2 AP3204 RIM, 38 X 10 X 8, GRAY
3 4 AAM2800-1 ASSEMBLY, HUB & SPINDLE, 608 HUB, 2-3/4” X 16” SPINDLE, FLANGE LOCK NUT
4 4 AM4597 HUB CAP STRAP, FOR AAM2800-1 ASSEMBLY
5 1 AM6173 WHEEL LEG, LEFT HAND, DUALS WITH PIVOT
5A 1 BP3072 GREASE ZERK, 1/4”- 28
5B 1 BP3516 TENSION BUSHING, 1-1/4” X 1” X 1” OAL
5C 2 BP3538 TENSION BUSHING, 2” X 1-3/4” X 1-1/2” OAL
6 1 AM6174 WHEEL LEG, RIGHT HAND, DUALS W/ PIVOT
6A 1 BP3072 GREASE ZERK, 1/4”- 28
6B 1 BP3516 TENSION BUSHING, 1-1/4” X 1” X 1” OAL
6C 2 BP3538 TENSION BUSHING, 2” X 1-3/4” X 1-1/2” OAL
7 2 AM6198 DUALS, ROCKER, WITH SPINDLE LOOPS FOR 2-3/4” SPINDLE
7A 2 BP3072 GREASE ZERK, 1/4”- 28
7B 12 BP3079 SET SCREW, SQ HEAD, 5/8”- 11 X 1-3/4”
7C 12 BP3080 NUT, HEX JAM, 5/8”- 11, GRADE 2
8 2 BM3640 PIN, 2” X 12-5/8” OAL
9 2 BP3136 HEX CAP SCREW, 5/8”- 11 X 4”, GRADE 5, PLATED
10 2 BP3375 NUT, HEX LOCK, 5/8”-11, NYLOCK
11 6 BP3599 MACHINERY BUSHING, 3” OD X 2” ID X 10 GAUGE
20” row spacing swap wheel legs from left to right
Outside wheel, valve stems to outside of the dual.
Inside wheels valve stems to inside of the dual.
AP2790
Valve Stem
AP2790
Valve Stem
AP2790
Valve Stem
AP2790
Valve Stem
AAM2914 Wheel
12.4 x 38 14 Ply 38 x 10 x 8
Left-hand
AAM2914 Wheel
12.4 x 38 14 Ply 38 x 10 x 8
Left-hand
AAM2915 Wheel
12.4 x 38 14 Ply 38 x 10 x 8
Right-hand
AAM2915Wheel
12.4 x 38 14 Ply 38 x 10 x 8
Right-hand
