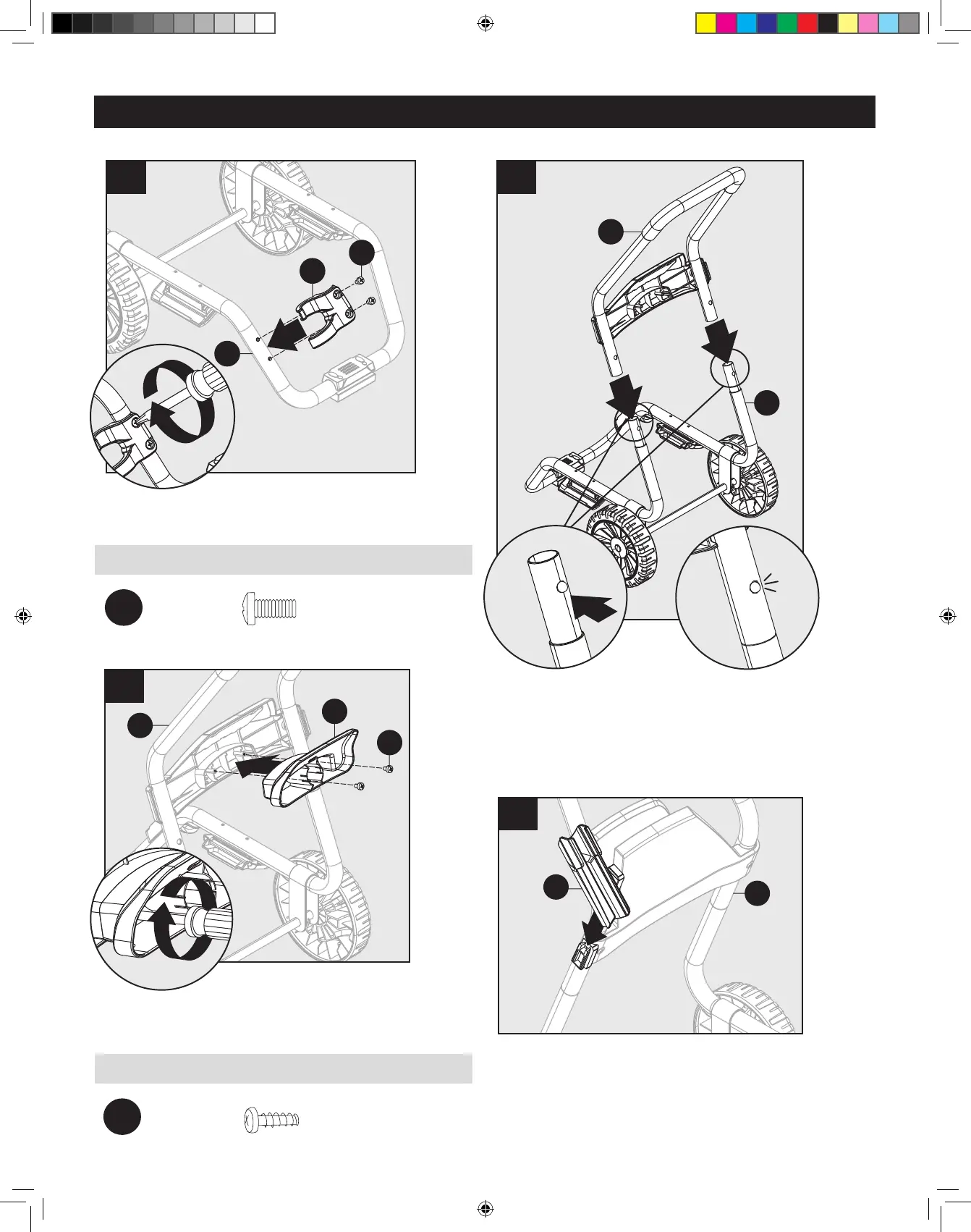

Install nozzle holder (H) to lower frame (G). Secure with
two screws (BB).
1
5
2
A
CC
B
Press buttons on lower frame (G) extensions and install
handle (B). Lower frame extensions will click when
handle is in proper position.
Install hose holder (A) onto back side of upper handle
(B). Secure with two screws (CC).
Screws
x 2
BB
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
Hardware Used:
Screws
x 2
CC
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
Hardware Used:
6
B
M
Slide spray gun holster (M) into place on the
upper handle (B).
ASSEMBLY INSTRUCTIONS
