SECTION 4
STEERING SYSTEM
4-1. CONTROL ARM
4-1.1. Steering Control Removal.
1. Engage the emergency power disconnect switch
Figure 4-1 and turn off key switch.
2. Remove screw and separate lower cover from the
arm rest.
3. Disconnect harness from potentiometer.
4. Remove screw from steering wheel.
5. Remove four screws, four lock washers.
6. Remove potentiometer from control arm.

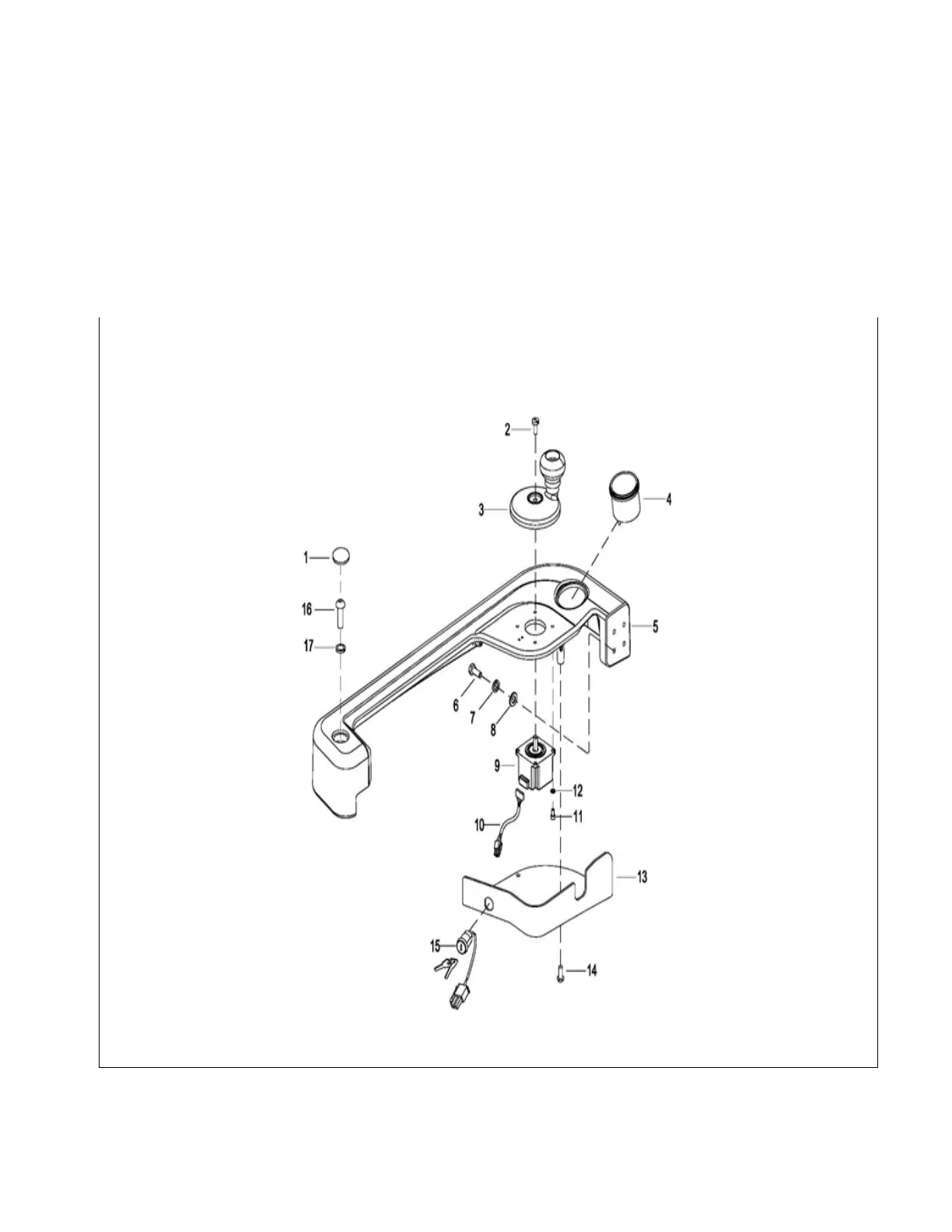

Figure 4-1 Control Arm (Left)
EC_0005
