SECTION 6
TRANSMISSION, DRIVE WHEEL, LOAD WHEEL, CASTERS
6-1. TRANSMISSION AND DRIVE MOTOR.
1. Engage the emergency power disconnect switch
and turn
off key switch.
2. Remove the compartment cover as described in
paragraph 4-2.1.
3. Remove the steering motor as described in
paragraph 4-4.1.
4. Raise the vehicle off the ground to provide
clearance for drive assembly out the bottom.
Securely block the vehicle to prevent movement.
5. Disconnect electric brake from harness.
6. Disconnect cables from drive motor.
7. Support the drive assembly (Figure 6-1) and
remove six screws, six washers and flat washers.
8. Lower the drive assembly out the bottom of the
vehicle.
9. Install new drive assembly by reversing the steps
above.

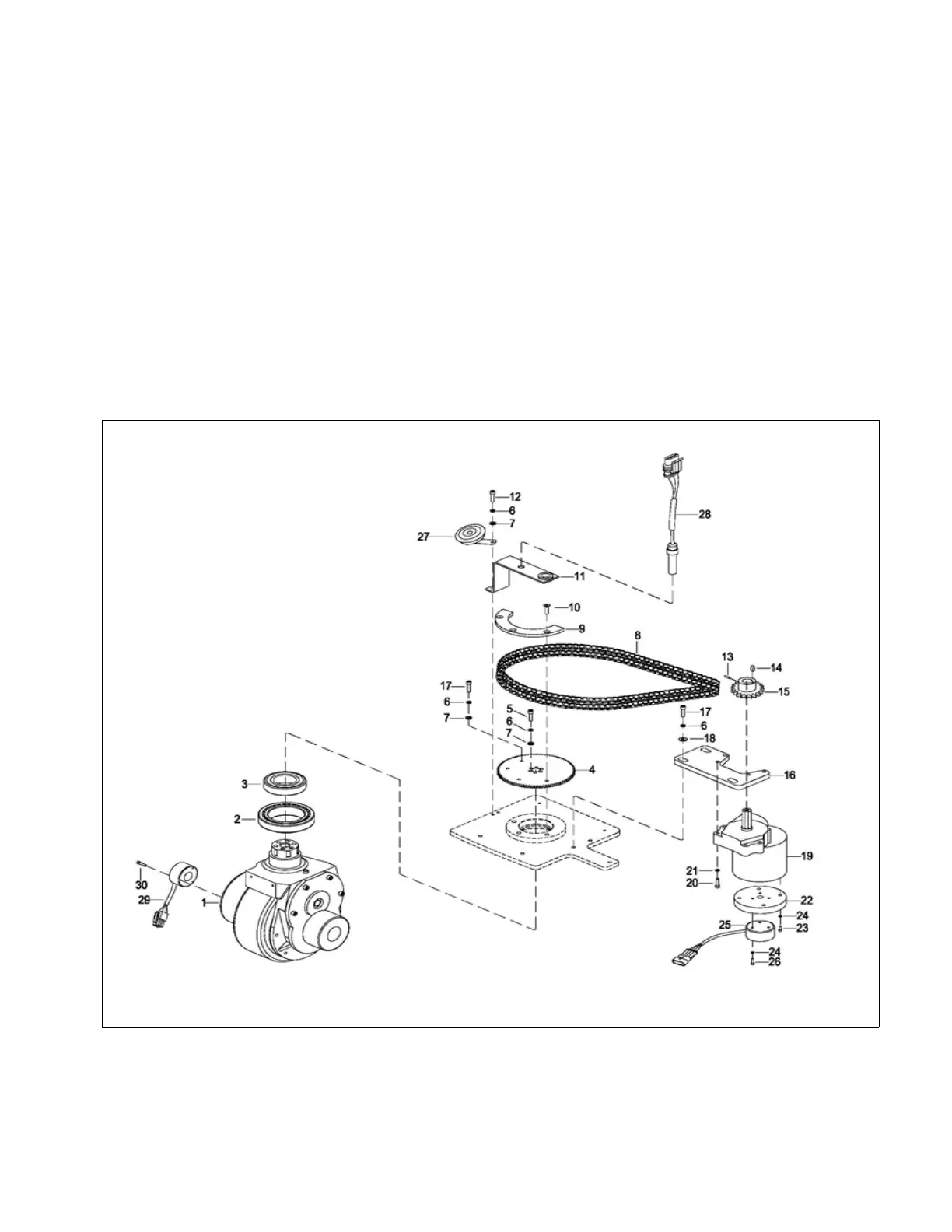

Figure 6-1 Drive System
