Blue Giant BG ZERO - Lubrication; Lift Chain Maintenance

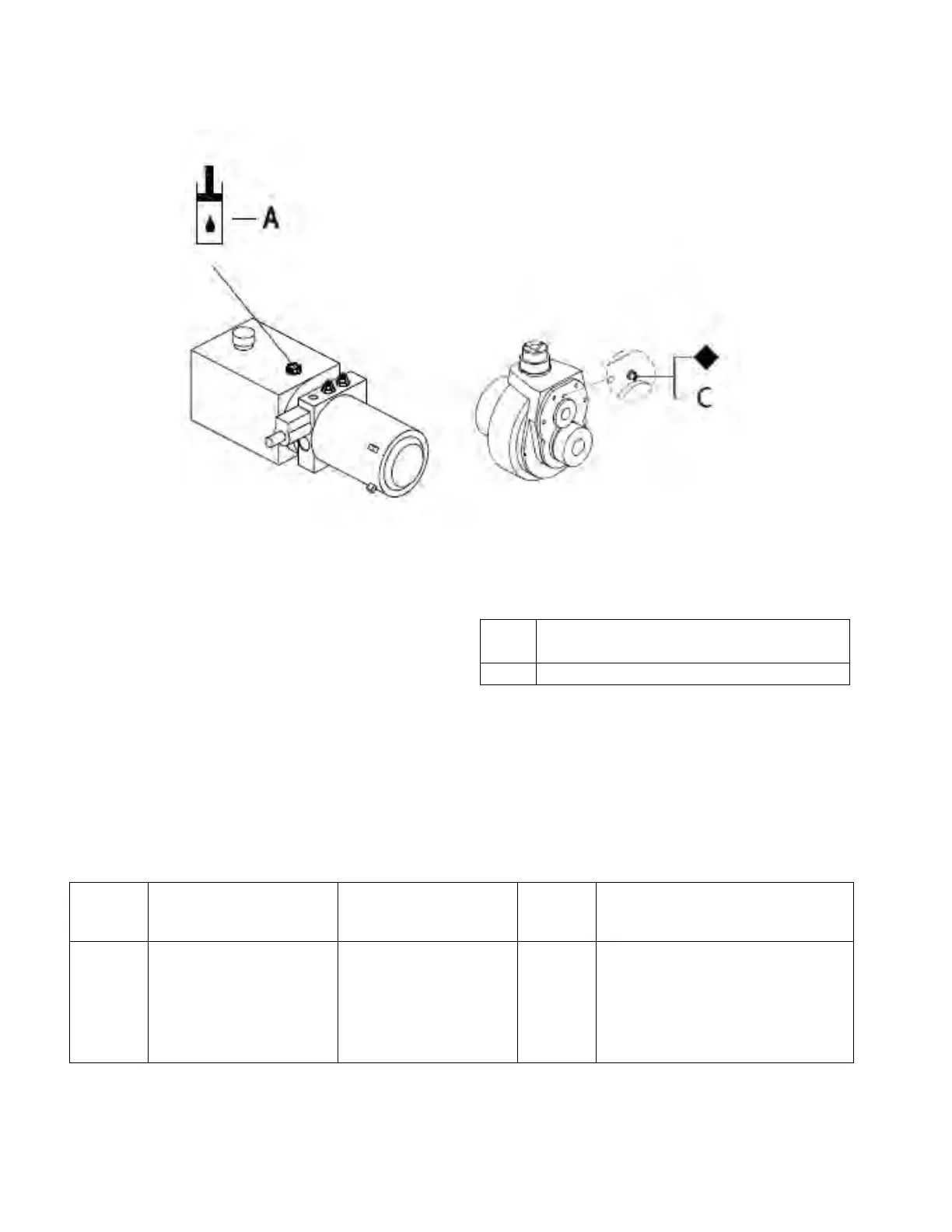

Figure 2-2 Lubrication Diagram
2-8. LUBRICATION.
Refer to Table 2-2 for the recommended types of
grease and oil. Table 2-3 in conjunction with
Figure 2-2 identifies the items requiring lubrication.
2-9. LIFT CHAIN MAINTENANCE.
Fully raise and lower lift carriage while observing
chains as they move over chain sheaves. Ensure
chain is aligned and tracking properly and all links are
pivoting freely. With lift carriage fully lowered, spray on
a film of Moly Chain Lube. For more information see
SECTION 7
Table 2-2 Recommended Lubricants
(See Table 2-3 for Application)
Table 2-3 Lubrication Chart
R8527
No. 1 Grease - Polylube GA352P
A Hydraulic oil - L-HM46#.
C Grease(contain Mus2)
FIG 3-2
INDEX
NO.
LOCATION METHOD OF
APPLICATION
TYPE
(Table
2-3)
APPLICATION
OF
LUBRICANT
1 Mast Spray No. 1
2 Hydraulic Reservoir Can A
3 Gearbox Tube C
Full length of channel where rollers
operate.
With platform fully lowered, fill
reservoir with hydraulic oil to level
on dip stick.
Grease gun
12
