4-1.2. Steering Control Installation.
1. Put the potentiometer in place in the control arm.
2. Secure the potentiometer with four screws and
washers.
3. Put the steering
wheel in place on the
potentiomter and secure with screw.
4. Connect the harness to the potentiometer.
5. Put the lower cover in place and secure with
screw.
6. Disengage the emergency power disconnect
switch and turn on the key switch.
4-2. FRONT COMPARTMENT COVER
4-2.1. Cover Removal.
1. Engage the emergency power disconnect switch
and turn off key switch.
2. Remove five screws that holds the cover down
Figure 4-2.
3. Carefully lift cover up and off the vehicle.
4-2.2. Cover Installation.
1. Carefully position cover on the vehicle.
2. Install five screws.
3. Disengage the emergency power disconnect
switch and turn on key switch.

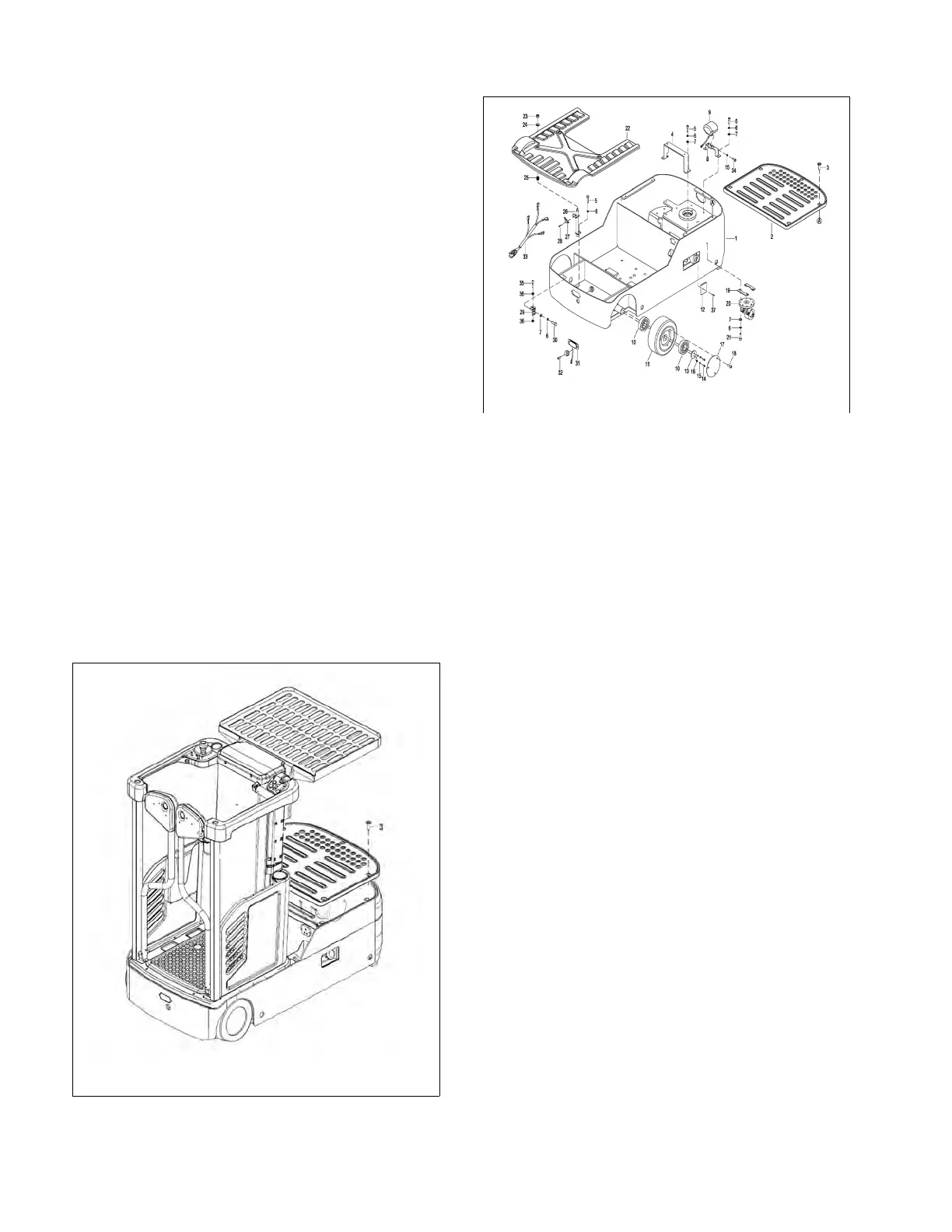

Figure 4-2 Front Compartment Cover
Figure 4-3 Rear Compartment Cover
4-3. REAR COMPARTMENT COVER
4-3.1. Cover Removal.
1. Raise the platform high enough to gain access to
the rear compartment cover.
2. Engage the emergency power disconnect switch
and turn off key switch.
3. Remove the four nuts and washers that holds the
cover down Figure 4-3.
4. Carefully lift cover up and off the vehicle.
4-3.2. Cover Installation.
1. Raise the platform high enough to gain access to
the area under the platform
2. Engage the emergency power disconnect switch
and turn off key switch.
3. Carefully position cover on the vehicle.
4. Install the four nuts and washers that holds the
cover down.
5. Disengage the emergency power disconnect
switch and turn on key switch.
6. Lower the platform.
