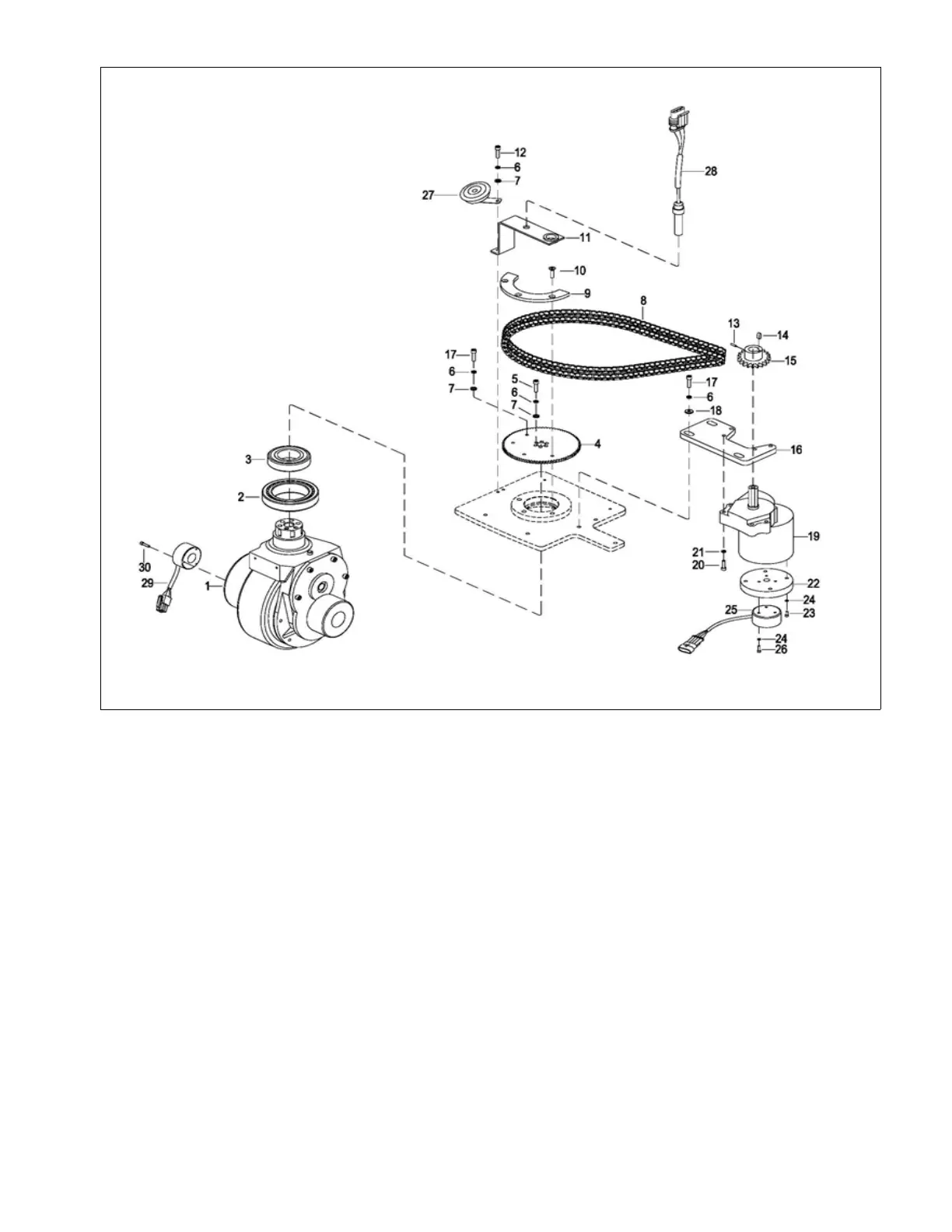

Figure 4-4 Drive System
4-4. STEERING MOTOR
4-4.1. Motor Removal.
1. Engage the emergency power disconnect switch
and turn
off key switch.
2. Remove the compartment cover as described in
paragraph 4-2.1.
3. Disconnect harness and cables from the steering
motor.
4. Remove four screws, flat washers and lock
washers that secures the steering motor bracket
and steering motor to the frame of the vehicle.
5. Remove the steering motor and bracket from the
top of the vehicle.
6. Remove four screws, flat washers and lock
washers that secures the steering motor to the
bracket.
7. Remove the screw and key from the chain gear
and then remove the chain gear from the steering
motor.
4-4.2. Motor Installation.
1. Secure the chain gear to the steering motor with
the key and screw
2. Secure the steering motor to the bracket with four
screws, flat washers and lock washers.
3. Put the steering motor with bracket in from the top
and secure it with four screws, flat washers and
lock washers
4. Reconnect the harness and cables.
5. Install the compartment cover as described in
paragraph 4-2.2.
6. Disengage the emergency power disconnect
switch and turn on the key switch.
