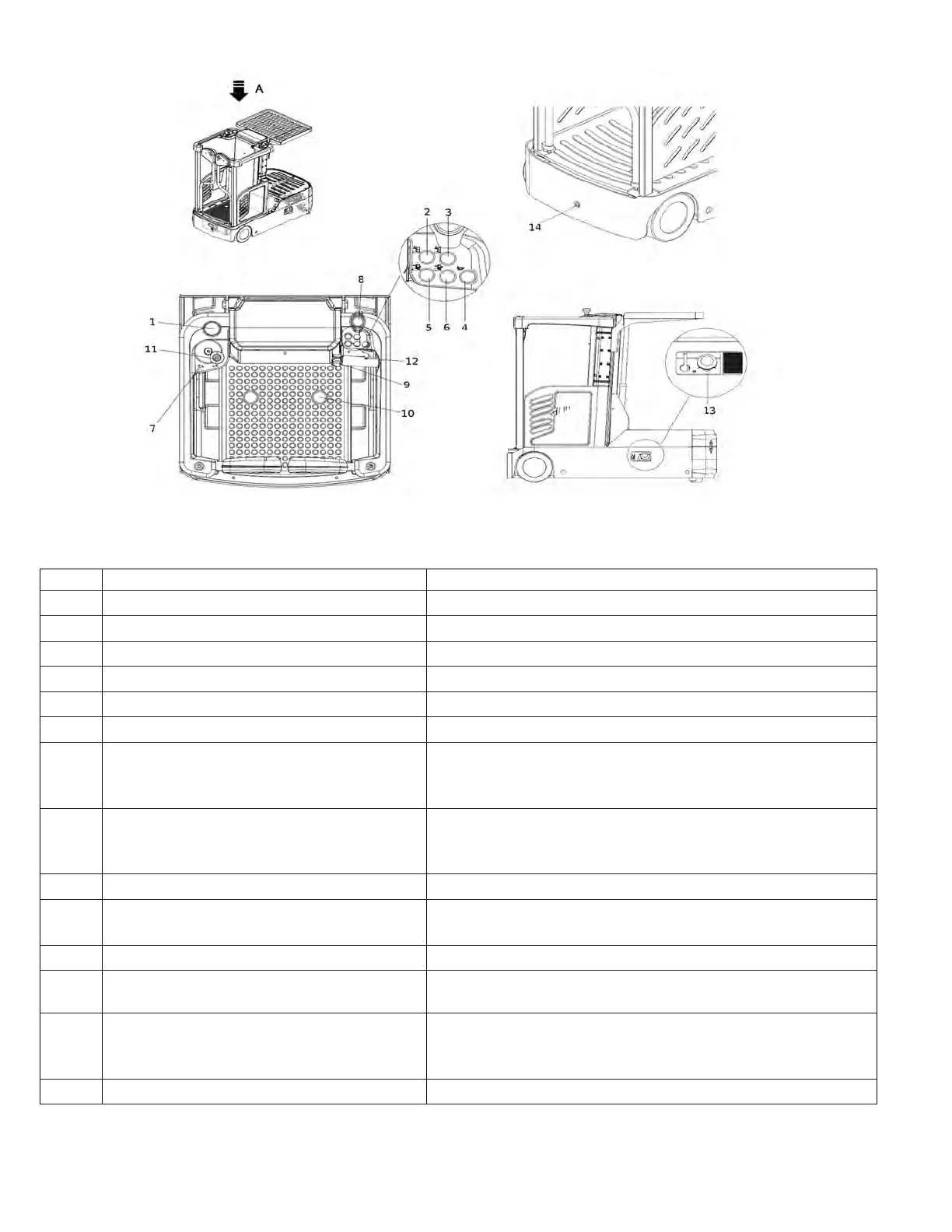

Figure 1-2
ITEM CONTROL / DISPLAY FUNCTION
1 Display unit
Operating information and alarm fault on display.
2 Lift button (tray) Lift the storage table.
3 Lowering button (tray) Lower the storage table.
4 Horn button Activates the horn.
5 Lift button (platform) Lift the lift platform.
6 Lowering button (platform) Lower the lift platform.
7 Key switch
Switches control current on and off. Removing the key
prevents the order picker from being switched on by
unauthorized personnel.
8
Emerg. power disconnect switch
Disconnects the supply current, deactivates all
electrical functions, causing the order picker to brake
automatically.
9
Travel switch
Select the required driving direction.
10
Right “Deadman switch
Apply the right drive pedal to start up the order
picker.
11 Steering wheel
Steers the order picker in the required direction.
12
Sensor switch for accelerator
The right hand must be placed in the position of the
sensor switch to drive the order picker to move.
13
Emerg. power disconnect switch
Disconnects the supply current, deactivates all
electrical functions, causing the order picker to brake
automatically.
14
Emergency lowering valve
Used to manually lowering the platform.
