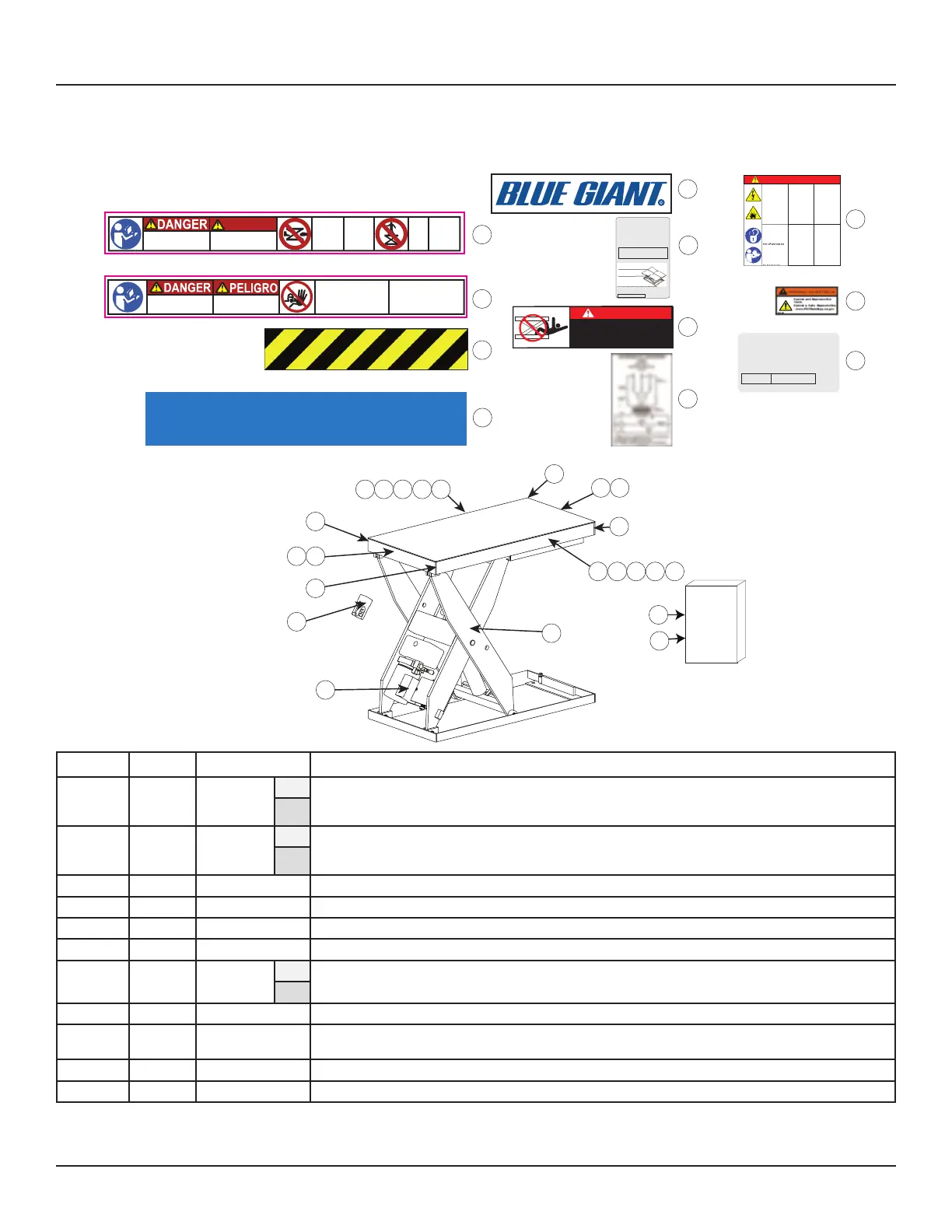

10.0 DECAL IDENTIFICATION AND LOCATION
These labels inform operators and personnel about hazardous areas on and around the lift table.
NOTE: Actual product may not appear exactly as shown.
Call out Qty Part No. Description
A 2 or 4
(varies on
table size)
038-045 EF Warns personnel to read operating instructions before using the lift table and warn of possible bodily injury
ES
B 2 or 4
(varies on
table size)
038-046 EF Warns personnel to employ the Maintenance Strut and Service Stand before working on and under the
lift table
ES
C 4 038-237 Safety Stripe tape to alert personnel of hazardous areas and edges (i.e. toe guards, edges)
D 2 (varies on model) Deck Capacity (example only) (locations may vary)
E 2 038-1400 Blue Giant logo (locations may vary)
F 2 038-1106EFS Nameplate to identify the lift table, serial number, and load transfer capacities
G 1 or 2 038-1203 E Warns personnel to stand clear of lift table and the immediate area while it is in operation
S
H 1 114-308 Wiring diagram for facility hookup (Keep in electrical box) (Sample only shown)
I 1 038-1105EFS Reminds personnel to lock out the electrical feeds before attempting work on the lift table (on exterior of
electrical box)
J 2 038-1097 Proposition 65 Cancer and Reproductive Harm Warning - California only (locations may vary)
K 1 038-1107EFS Rated deck capacity and electrics (Located on Powerpack)
OPERATION PLACARD
The Operation Placard (Part. No. 038-545E) is to be wall mounted near the lift table controls. A duplicate is provided on the following page.
D
A
E
A
F
H
B
I
K
A
A
B
B
B
J
G
C
C
C
C
Control
Box
J
D
E
LIFT TABLE SPEED 25 FPM MAXIMUM
VITESSE DE LEVAGE 25 P.P.M. MAXIMUM
VELCOCIDAD MAXIMA DE SUBIDA DEL EQUIPO: 25 P.P.M
5 MINUTE DUTY CYCLE
5 MINUTE DUREE DE SERVICE
CICLO DE TRABAJO: 5 MINUTOS
BLUE GIANT EQUIPMENT CORPORATION
www.bluegiant.com
MADE IN CANADA
FABRIQUÉ EN CANADA
FABRICADO EN CANADÁ
038-1107EFS
MODEL / MODELE / MODELO
SERIAL NO. / NO. DE SERIE
ELECTRICS / ALIMENTATION /
ESPECIFICACIONES ELECTRICAS
HP / CV / CF
ED5/72X96-10S3
POWER / TENSION / ENERGIA 460 / 3 / 60
457576.1-01
RATED CAPACITY /
CAPACITE NORMINALE /
CAPACIDAD NOMINAL
5,000 / 2,273
24VAC
(V / PH / HZ)
5
)AAAA/MM()YYYY/MM(9102/01BAF / GFM
(lb /kg)
BLUE GIANT EQUIPMENT CORPORATION
www.bluegiant.com
MODEL / MODELE / MODELO
SERIAL NO. / NO. DE SERIE
ELECTRICS / ALIMENTATION /
ESPECIFICACIONES ELECTRICAS
X / XX
POWER / TENSION / ENERGIA XXX / X / XX
X
RATED CAPACITY /
CAPACITE NORMINALE /
CAPACIDAD NOMINAL
X / X
XXVAC
(V / PH / HZ)
)AAAA/MM()YYYY/MM(XXXX/XBAF / GFM
REFER TO SAFETY AND OPERATING INSTRUCTIONS IN YOUR OWNER’S MANUAL
SE REFERER AUX CONSIGNES DE SECURITE ET D'OPERATION DANS VOTRE MANUEL D'INSTRUCTIONS
REFIERASE A LAS INSTRUCCIONES DE SEGURIDAD Y DE OPERACION EN EL MANUAL DEL USUARIO
CARGA MAXIMA SOBRE EL EJE UNICO
COMPLIES WITH / CONFORME ANSI MH29.2
MADE IN CANADA
FABRIQUÉ EN CANADA
FABRICADO EN CANADÁ
038-XXXXEFS
DO NOT EXCEED RATED CAPACITY
NE JAMAIS DEPASSER LA CAPACITE NORMINALE
NO EXEDA LA CAPACIDAD NOMINAL
4,000lbs (1,819kg)
2,500lbs (1,137kg)
(lb /kg)
DANGER
038-1203E Rev.1.0
Stand clear while
lift table is moving.
038-045ES Rev.1.0
Riesgo de Aplastamiento y/o Caida
Leer y entender todas las instrucciones
antes de de operar o hacerle mantenimiento
al equipo.
No entrar debajo de
esta plataforma al menos que
este mecánicamente
bloqueda.
Do not enter under
this platform unless
it is mechanically locked.
Crush and fall hazards
Read and understand all instructions
before operating or servicing lift.
No colocar
manos o
pies debajo
de la
plataforma
No pararse,
ni asentarse
ni trasladars
sobre el e
elevador
Do not
stand,
sit or
ride
on lift.
PELIGRO
Do not put
hands or
feet under
the
platform.
Para evitar lesiones,
Leer y entender todas las instrucciones
antes de de operar o hacerle
mantenimiento al equipo.
To avoid bodily injury,
Read and understand all instructions
before operating or servicing lift.
038-046ES Rev.1.0
038-1400
CAPACITY 12,000 lbs.
C
B
A
F
G
H
J
I
K
038-1105EFS
Risques
D’explosion, De
Chocs Et D’arc
Électrique.
Respecter toutes les
exigences de la
norme NFPA 70E en
matière de sécurité
du travail et
d’équipement de
protection
individuelle.
Tension
Électrique
Dangereuse.
Peut causer de graves
blessures ou la mort.
Éteindre et verrouiller le
système avant de
procéder à l’entretien.
Ne PAS utiliser la
machine avec la porte
du panneau électrique
ouverte ou les
couvercles retirés.
Riesgo de
explosion por
descarga y/o arco
electrico.
Siga todos los
requisitos NFPA 70E
para prácticas de
trabajo seguras y para
equipos de
protección personal.
Voltage
Peligroso.
Puede ocasionar
lesiones graves o
muerte.
Apague y bloquee el
Sistema antes de
hacerle mantenimiento
al equipo.
No opere la máquina
con las puertas del
panel eléctrico abiertas
o con las cubiertas
removidas.
DANGER / PELOGRO
Shock and arc
flash explosion
hazards.
Follow all
requirements in
BFPA 70E for safe
work practices and
for personal
protective equipment.
Hazardous
Voltage.
Will cause severe
injury or death.
system power before
servicing.
Do not operate
machine with electrical
panel doors opened or
covers removed.
D
E
