12.1 HYDRAUlIC SCHEMATIC

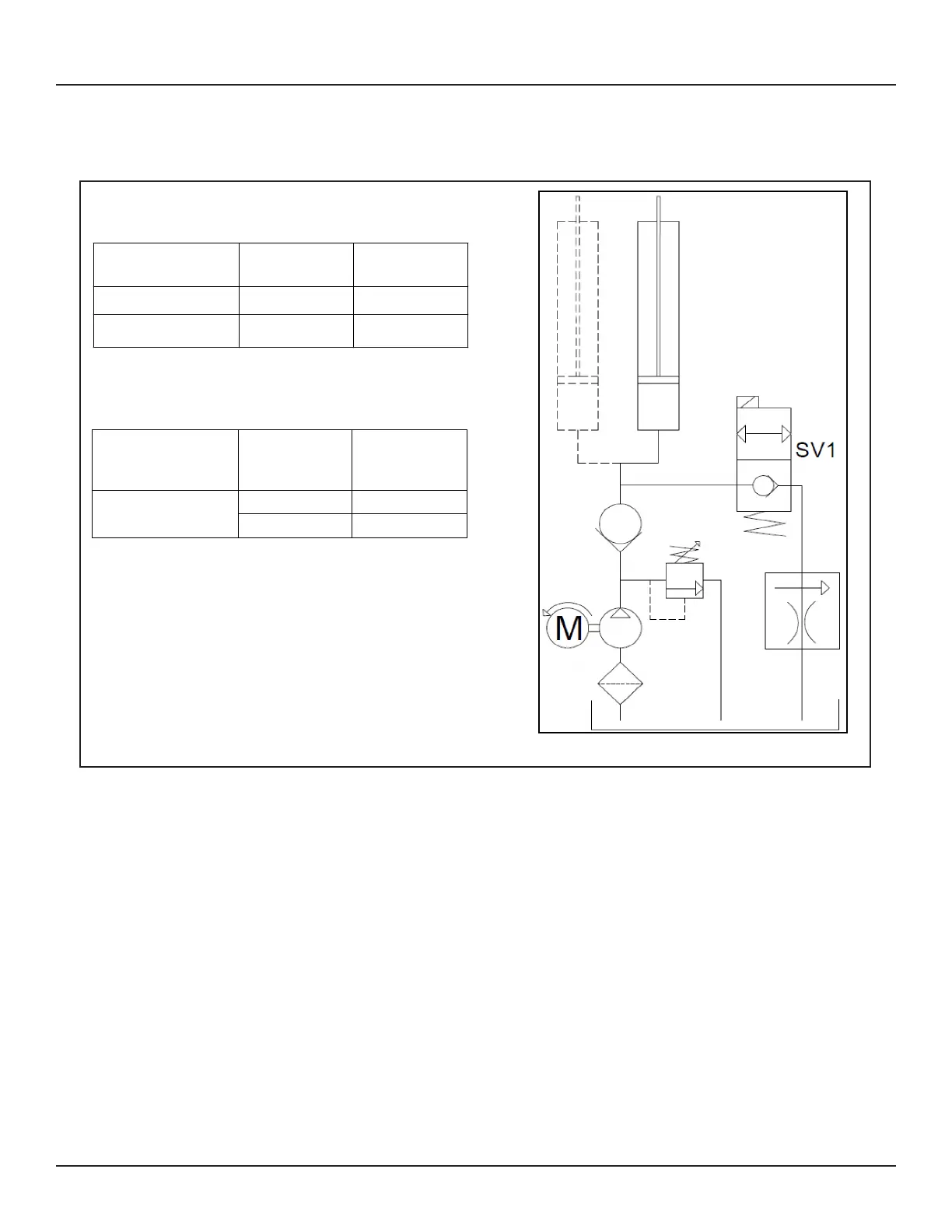

This diagram illustrates a sample (lift power up and gravity power down) Powerpack hydraulic circuit.
NOTE:  Alway refer to site documentation for installation specifics.
HYDRAULIC SCHEMATIC
TRUTH TABLE:
ACTION MOTOR SV1
DECK UP X
DECK DOWN X
VERTICAL
TRAVEL (in)
CAPACITY
(LB)
CYL. QTY.
36 & 48
2000 1
4000 2
