11.0 EQUIPMENT COMPONENT ILLUSTRATIONS
This section displays the various hardware components.

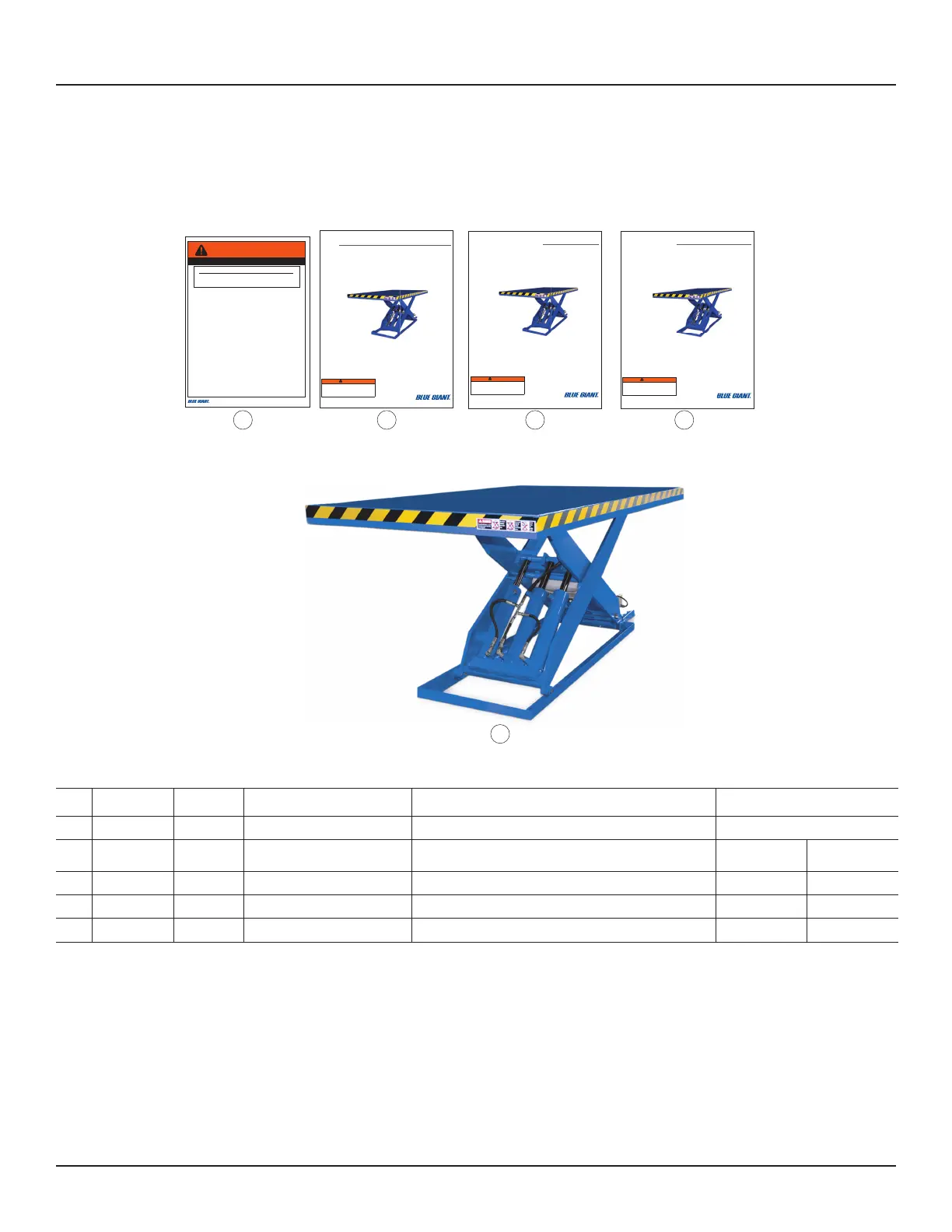

11.1 COMPONENTS AS SHIPPED CHECKLIST
This section displays the shipped hardware components.
a
CALLOUT QTY. PART NO. DESCRIPTION APPROX. WEIGHT
A 1 Model Dependent LFT Lift Table Varies by Model
B 1 038-545E Operation/Warning Placard — —
C 1 038-475EI Installation Manual — —
D 1 038-475E Owner’s Manual — —
E 1 038-475EPL Parts List — —
WARNING
APPLIES TO BLUE GIANT SCISSOR LIFTS
038-545E
Do NOT go under the scissor lift platform to
clean or perform routine maintenance unless
the Maintenance Strut and Service Stand are
safely and securely engaged.
Prior to using the scissor lift:
• Verify that all safety devices (guard rails,
restraint chains, toe guards, and warning bells-if
equipped) are in place and functioning properly.
• Operate the scissor lift through one complete
lift / lower cycle and verify its proper operation.
Inspect the scissor lift for signs of structural
damage or mechanical malfunction. If damage
is observed or the unit fails to operate properly,
remove them from service and notify
maintenance personnel immediately.
Do NOT exceed the capacity as stated on the
nameplate.
Ensure that the scissor lift serial nameplate is
present and legible.
Do NOT leave the control station where it can
be accidently operated or damaged.
Be aware that lift capacity may be reduced
when loads are rolled over the platform sides or
edges. Refer to the nameplate for reduced
capacity under these conditions.
If loads are mobile, secure them in a fixed
position before operating the scissor lift.
Lift operator(s) must be present during all steps
of operation.
Lift operator(s) must keep an unobstructed view
of lift, any operation light/horn/bell, and other
operators to ensure safe operation.
Ensure that all personnel near the scissor lift
are aware that it is being operated.
Keep objects, control cables, spills, possible trip
hazards, and debris away from around or under
the scissor lift platform/lip and its travel path.
If the scissor lift is equipped with a hinged
bridge(s), the bridge must overlap the trailer
bed by a minimum of 4" (102mm) before use.
Do not use the bridge if it is supported solely by
the lifting chain.
Hinged lips may drop unexpectedly, keep
people and objects clear of the area
immediately under or near the lip.
If maintenance or service is required:
• Only authorized service personnel shall
provide maintenance / service on the lift.
• Follow approved lockout procedures.
• Do NOT work on or under the lift without
properly engaging the lift's maintenance strut.
Blue Giant recommends the use of a secondary
means (serivce stand) of securing the scissor
lift while preforming repairs under the deck.
• The lift shall not be modified or altered without
written approval from an authorized Blue Giant
representative.
• Maintain records of repairs and preventive
maintenance reports.
Do not operate this scissor lift without proper training and authorization.
READ AND UNDERSTAND THE FOLLOWING:
The instructions and warnings on this placard and in the owner’s manual.
The warnings on the scissor lift decals.
C
b
E
D
ACTUAL PRODUCT MAY NOT APPEAR EXACTLY AS SHOWN
STARTING FROM JANUARY 15, 2023 / SERIAL # 0.
ISSUE DATE: JANUARY 15 2023 REV. 1.0 (PART # 038-)
IN-PLANT LFT LIFT TAbLE
INSTALLATION & TECHNICAL MANUAL
WARNING
Do not operate or service this product unless you have
read and fully understand the entire contents of this
manual. Failure to do so may result in property damage,
bodily injury or death.
ACTUAL PRODUCT MAY NOT APPEAR EXACTLY AS SHOWN
STARTING FROM JANUARY 15, 2023 / SERIAL # 0.
ISSUE DATE: JANUARY 15, 2023 REV. 1.0 (PART # 038-E)
IN-PLANT LFT LIFT TAbLE
OWNER’S MANUAL
WARNING
Do not operate or service this product unless you have
read and fully understand the entire contents of this
manual. Failure to do so may result in bodily injury or
death.
PARTS LIST
IN-PLANT LFT LIFT TAbLE
ISSUE DATE: JANUARY 15, 2023 REV. 1.0 (PART # 038-EPL)
ACTUAL PRODUCT MAY NOT APPEAR EXACTLY AS SHOWN
STARTING FROM JANUARY 15, 2023 / SERIAL # 0.
WARNING
Do not operate or service this product unless you have
read and fully understand the entire contents of this
manual. Failure to do so may result in bodily injury or
death.
A
IN-PLANT LFT LIFT TABLE — OWNER'S MANUAL
28 ISSUE DATE: NOVEMBER 15, 2023 REV. 1.0 (PART # 038-475E)
