4 - Working with PRO-CENTER

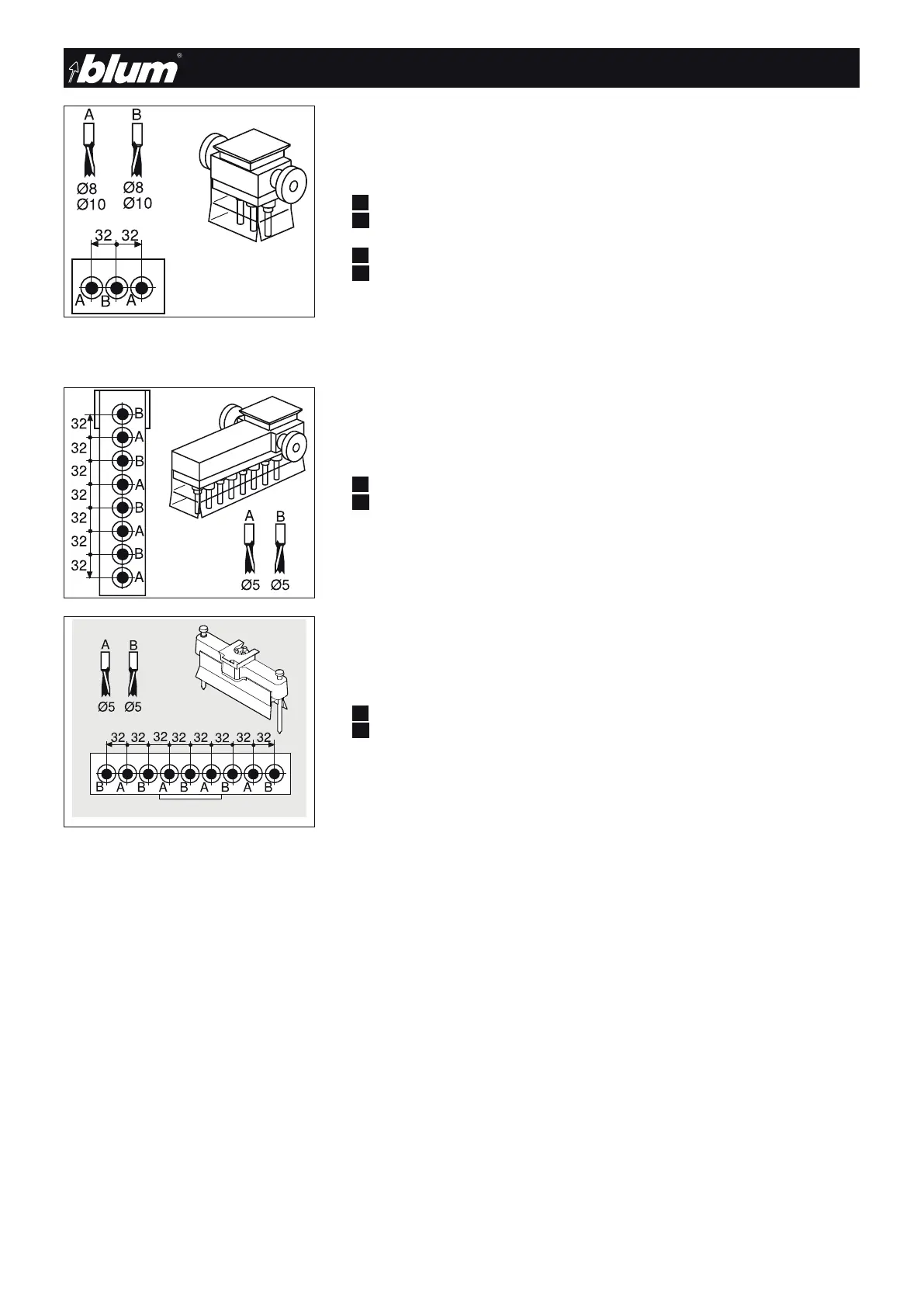

4.3.5) D drilling head: MZK.2400 for wooden dowel connections
• Drilling head with 3 spindles
• Drill bits:
(A) ... 2 x Ø 8 mm Counter clockwise
(B) ... 1 x Ø 8 mm Clockwise
or
(A) ... 2 x Ø 10 mm Counter clockwise
(B) ... 1 x Ø 10 mm Clockwise
• Colour coded bits:
Counter clockwise = red
Clockwise = black
4.3.6) SYH drilling head: MZK.2200.01 for all Blum cabinet profiles
• Drilling head with 8 spindles
• Drill bits:
(A) ... 4 x Ø 5 mm Counter clockwise
(B) ... 4 x Ø 5 mm Clockwise
• Colour coded bits:
Counter clockwise = red
Clockwise = black
4.3.7) SYH drilling head: MZK.2810.01 for hole groups and system drilling
• Drilling head with 9 spindles
• Drill bits:
(A) ... 4 x Ø 5 mm Counter clockwise
(B) ... 5 x Ø 5 mm Clockwise
• Colour coded bits:
Counter clockwise = red
Clockwise = black
