4 - Working with PRO-CENTER

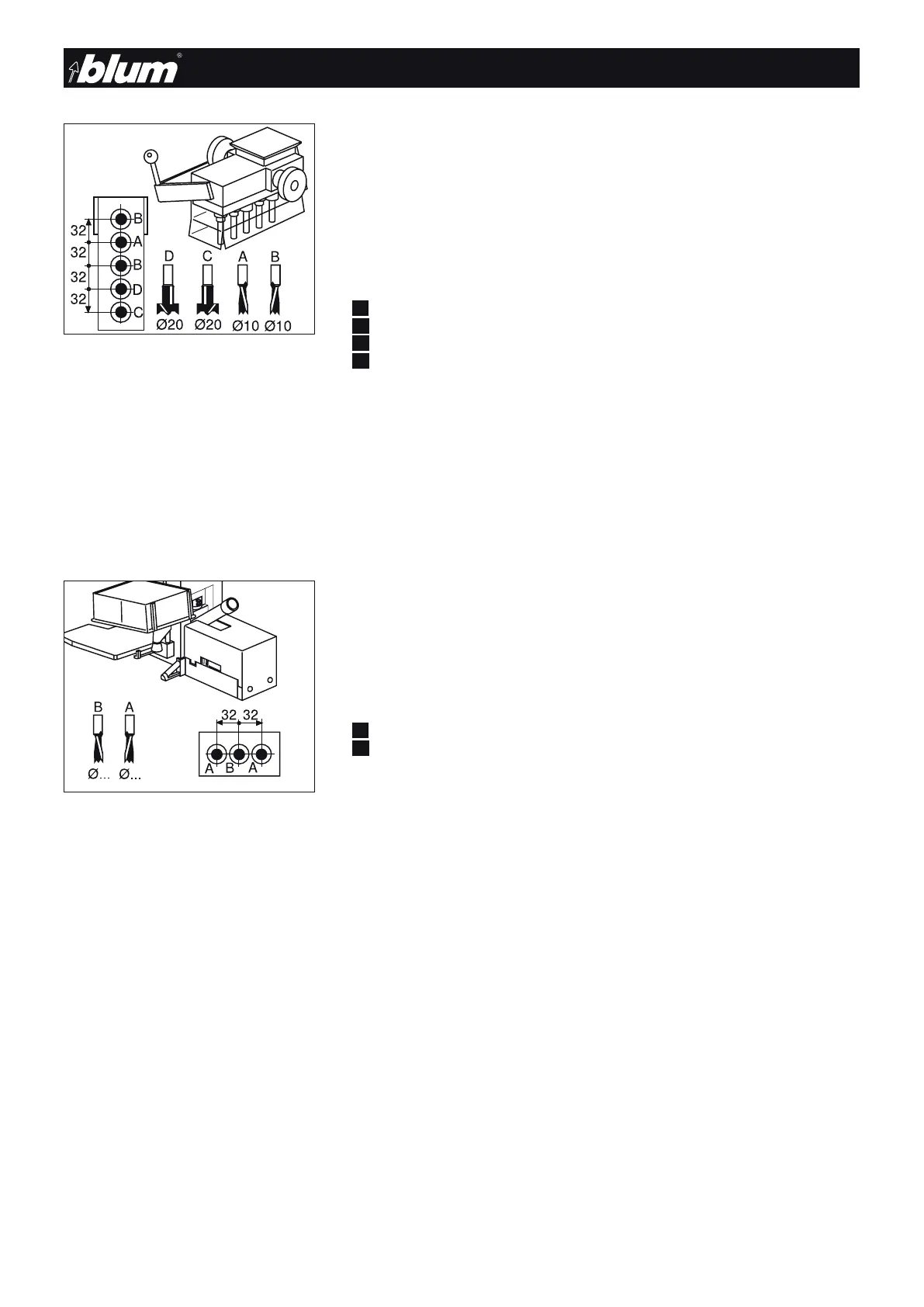

4.3.8) BOX drilling head: MZK.2230 for all METABOX front fixing brackets and
back fixing positions
• Drilling head with 5 spindles
• With drilling depth stop
• Swing arm for ram attachment
• Drill bits:
(A) ... 1 x Ø 10 mm Counter clockwise
(B) ... 1 x Ø 10 mm Clockwise
(C) ... 1 x Ø 20 mm Clockwise/
(D) ... 1 x Ø 20 mm Counter clockwise
• Colour coded bits:
Counter clockwise = red
Clockwise = black
Important
For assembly with a gallery fixing, the gallery fixing must be inserted first and
then the front fixing bracket is inserted after the second insertion of the fitting.
4.3.9) H drilling head: M65.26XX horizontal drilling unit for dowel connections,
cabinet connector screws and furniture connectors
• Drilling head with 3 spindles
• Drilling head cannot be changed
• Drill bits:
(A) ... 2 x Ø ... mm Counter clockwise
(B) ... 1 x Ø ... mm Clockwise
Important
The drill bit length for Ø 8 and Ø 10 mm is 77 mm.
The 57 mm drill bit must be used for a Ø 5 mm drill bit (precision).
In this case, 20 mm must be calculated for the drilling depth setting (e.g.
set 45 mm for a 25 mm drilling depth).
• Colour coded bits:
Counter clockwise = red
Clockwise = black
!
