38
SERVO-DRIVE for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM –
General information

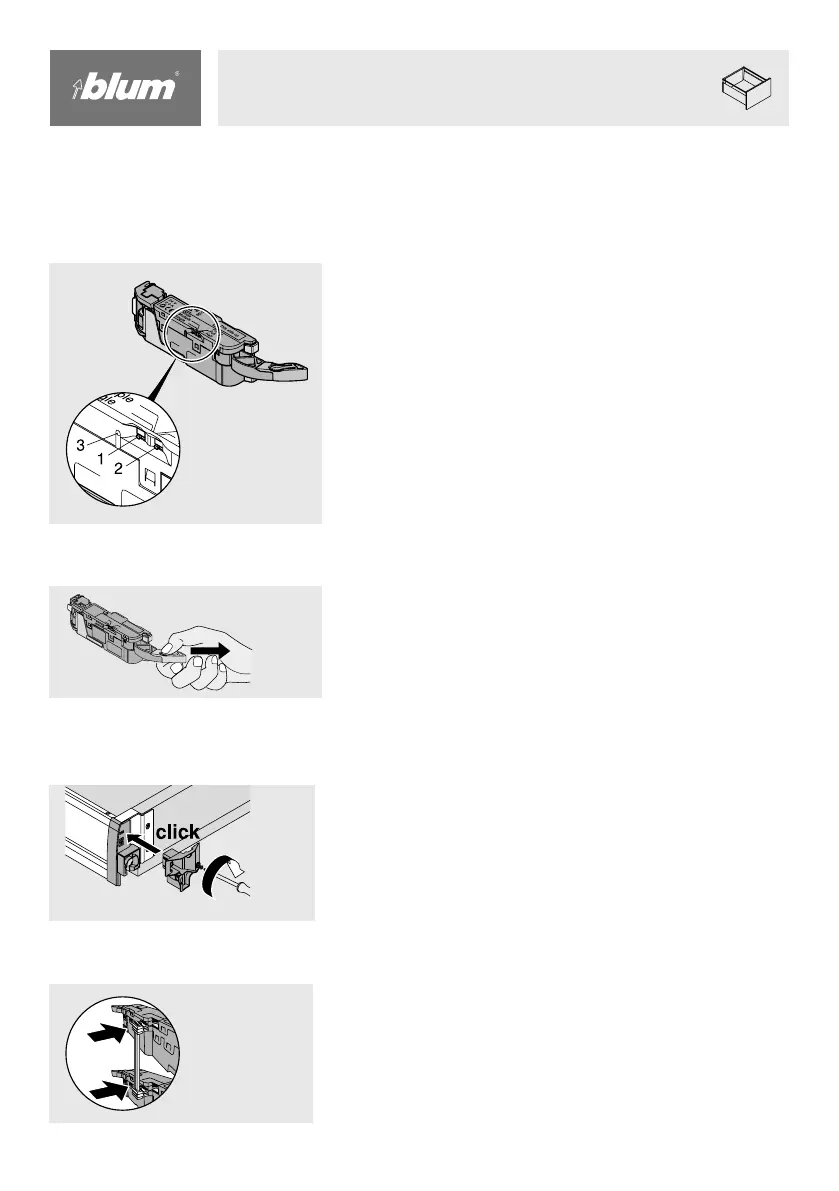

Drive unit selector switch
Selector switch Mode (1)
Single: Only one drive unit moves (standard setting)
Multiple: When set to "Multiple," drive units move simulta-
neously to any drive unit that is activated on same vertical
bracket profile. This does not apply on horizontal bracket
profile or any L brackets.
Selector switch Power (2)
Full: Standard setting
Half: For short nominal lengths (270–300 mm)
Operating mode display (LED) (3)
The lever extension must be removed for a cabinet width of
275-320 mm in combination with a steel back and for a cabi-
net width up to 300 mm in combination with a chipboard back.
Trigger guidance
The lever guide must be attached and secured with screws
for cabinet widths 275-320 mm if being used with chipboard
backs.
Synchronisation cable
Two drive units that are supposed to open simultaneously
must be connected via the synchronisation cable.
