LD6 MAIN FRAME INSTALLATION

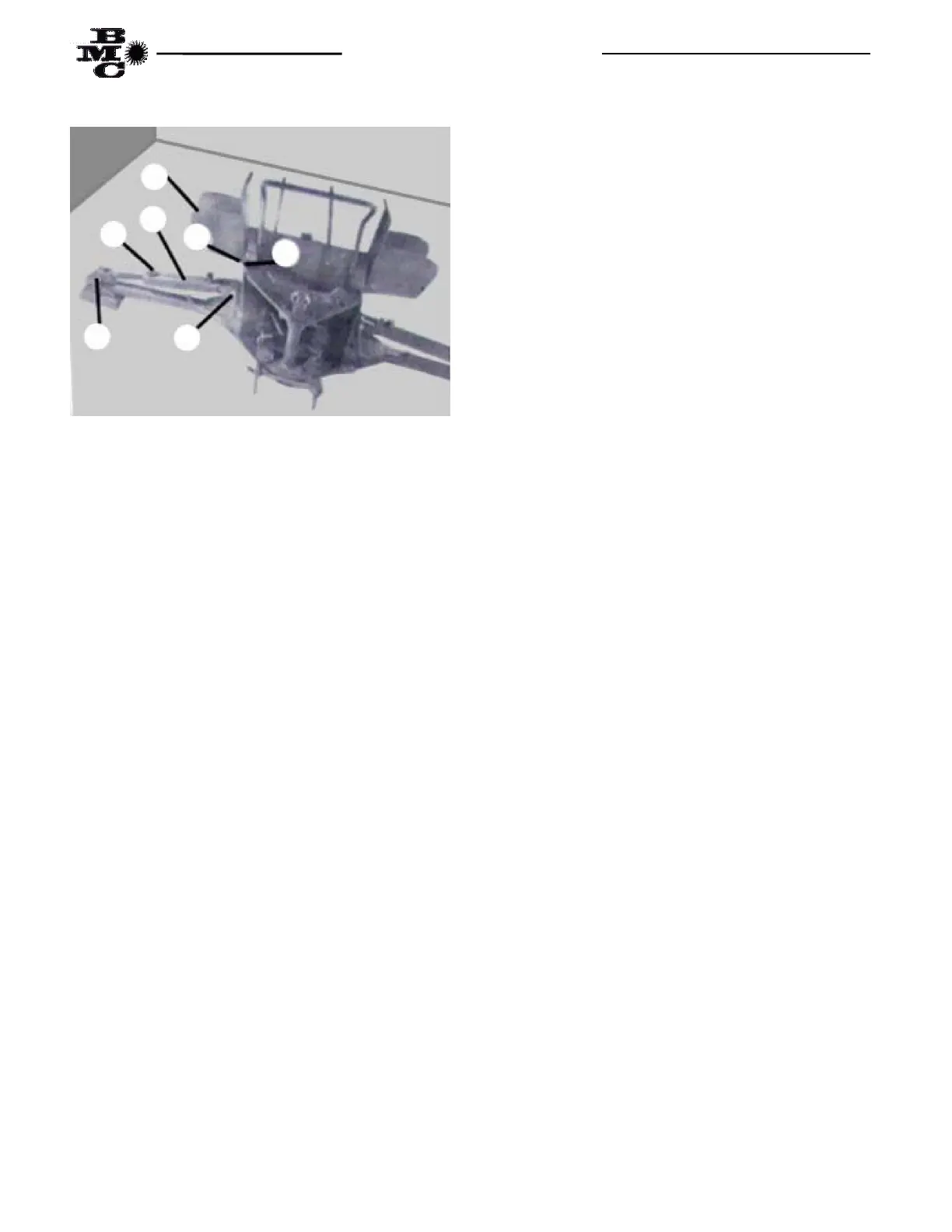

Fig. 6

(8) Attach the rod end of the stabilizer cylinder to the

anchor lug, located in the center of the stabilizer arm

near the stabilizer foot, using one each cylinder pin

(Item 10) and two each 3/16” x 1 ½” cotter pins (Item

11) as shown in Fig. 6.

(9) Attach the right side stabilizer cylinder by

repeating steps 7 and 8.

(10) Attach the left stabilizer guard (Item 7) over the

mounting receptacle, located on the upper portion of the

main frame side plate, aligning the two holes in the

stabilizer guard with the mounting receptacle and

inserting the guard pin (Item 8) through the guard and

receptacle. Secure the pin with two each 1/8” x 1”

cotter pins (Item 12) as shown in Fig. 6.

(11) Attach the right stabilizer guard by repeating

step 10.

(12) Install one each of the SAE 6 O-Ring to JIC 6

Flare Straight adapter fittings (Item 1 in box parts list,

page 5) in both ports of the right and left stabilizer

cylinders (four (4) required) as shown in Fig. 6.

NOTE: It is very important to check the torque on the eight 5/8” x 2” machine bolts retaining the mainframe to the

mounting frame top plate after eight (8) hours of operation and every 40 hours of operation thereafter. It is

acceptable, once operation of backhoe and mounting frame adaptation to tractor has proved satisfactory, to weld the

mainframe to the mounting kit.
