LD6 DIPPER ARM ASSEMBLY
11

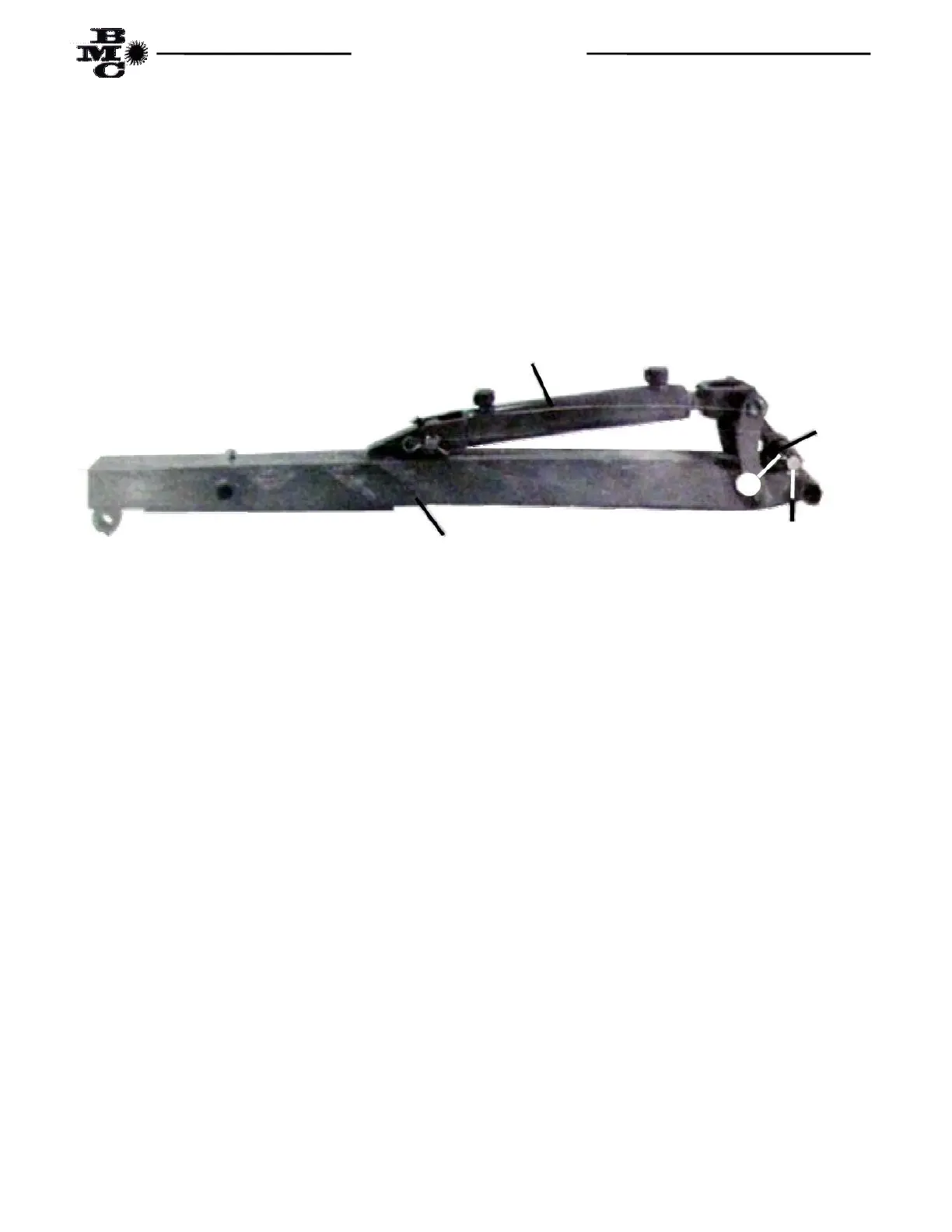

FIG. 1
ITEM DESCRIPTION QUANTITY
1 Dipper (Crowd) Arm 1
2 Pin, Bucket Link 1” x 6 ¼” 1
3 Spacer, Bucket Link 1” I.D. x 1 ¼” O.D. x 2” 2
4 Cotter Pin 3/16” x 1 ½” 2
5 Cylinder, Bucket 1
1
2
3
4
5
