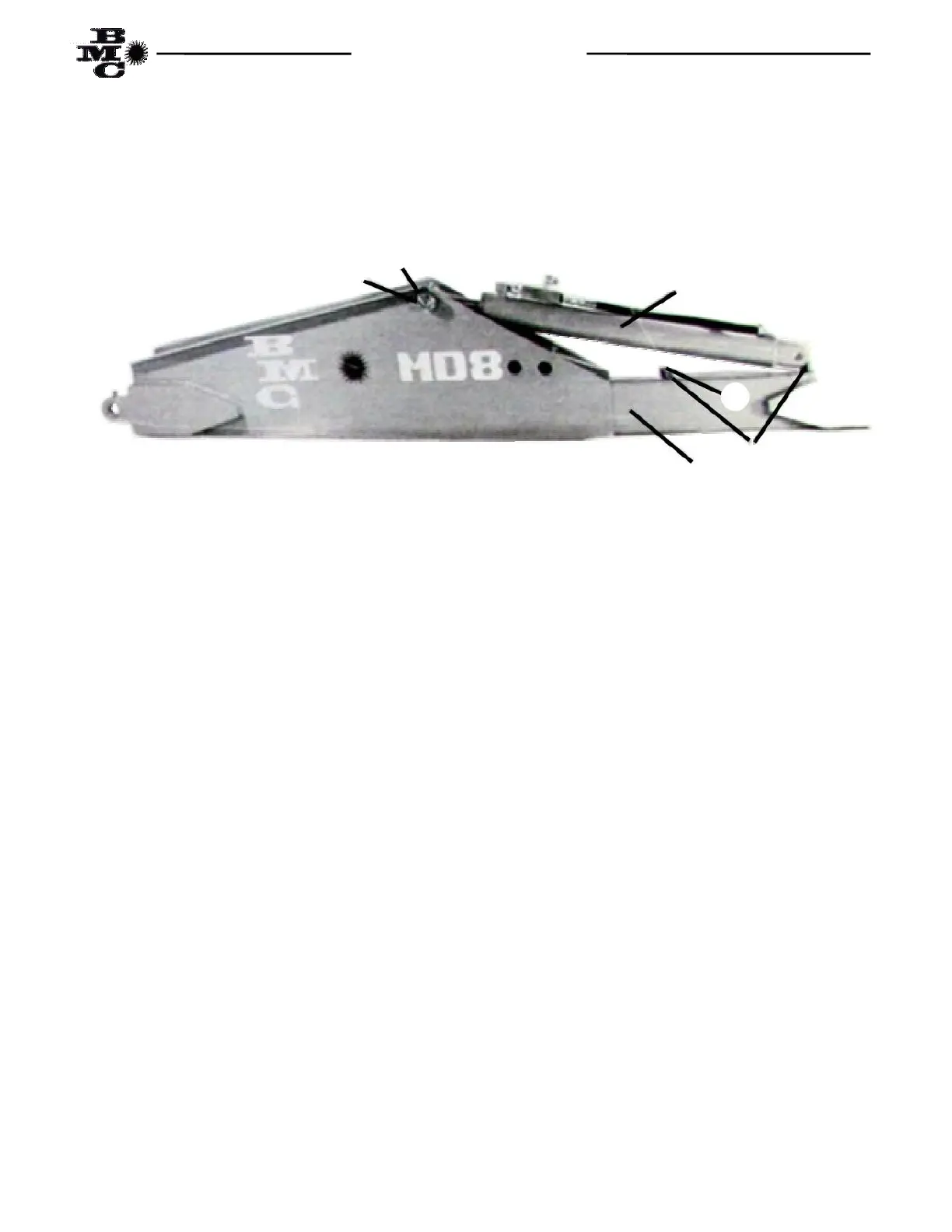

MD8 MAIN BOOM ASSEMBLY
16
6
FIG. 1
ITEM DESCRIPTION QUANTITY
1 Main Boom 1
2 Cylinder, Main Boom 1
3 Pin, Cylinder ¾” x 2 ¾” 1
4 Cotter Pin 1/8” x 1” 2
5 Cylinder, Crowd 1
6 Bolt, Machine 1” x 6 ½” 1
7 Nut, Self-Locking 1” 1
8 Clamp, Hose 4” 2
9 Bolt, Machine ¼” x 1 ¼” 2
2
9
8
7
1
