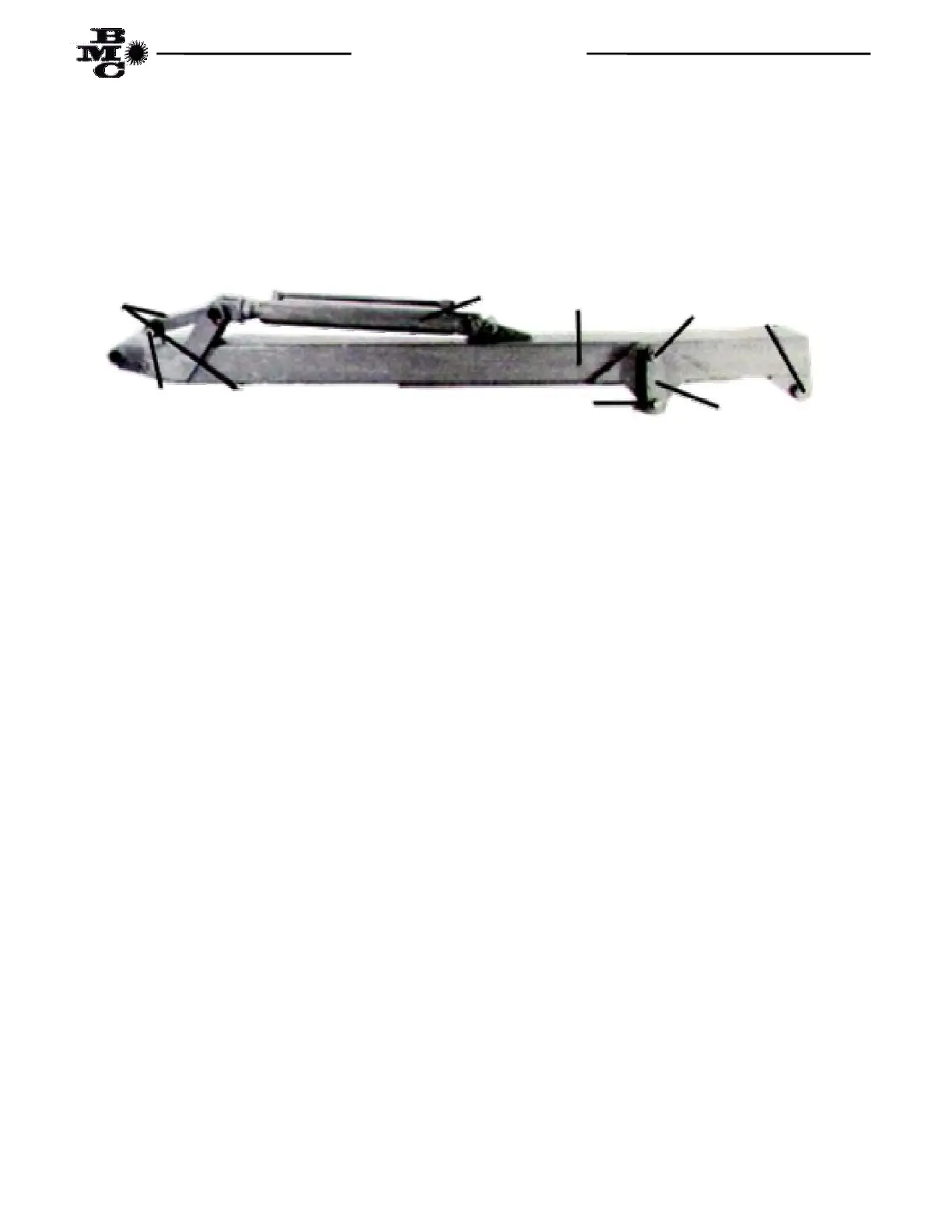

MD8 DIPPER ARM ASSEMBLY
18
FIG. 1
ITEM DESCRIPTION QUANTITY
1 Dipper (Crowd) Arm 1
2 Pin, Locking Arm 1” x 7 7/8” 1
3 Plate, Locking Pin 1
4 Bolt, Machine G5P ½” x 1 ½” 1
5 Washer, Lock ½” 3
6 Spacer, Locking Pin 1” I.D. x 1 ¾” O.D. x 1/8” 2
7 Spacer, Locking Pin ½” I.D. x 1” O.D. x 1 ¼” 2
8 Bolt, Machine G5P ½” x 2 ¼” 2
9 Bolt, Machine G5P 1” x 4 ½” 1
10 Nut, Self-Locking Hex 1” 1
11 Cylinder, Bucket 1
12 Pin, Bucket Link 1” x 6 ¼” 1
13 Spacers, Bucket Link 1” I.D. x 1 ¼” O.D. x 2” 2
14 Cotter Pin 3/16” x 1 ½” 2
1
12
3
4
9, 10 8
11
13
14
To Next Page
