Clutch
Checking clutch function
Pull the clutch lever.
The pressure point must be
clearly perceptible.
If the pressure point is not clearly
perceptible:
Have the clutch checked by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.

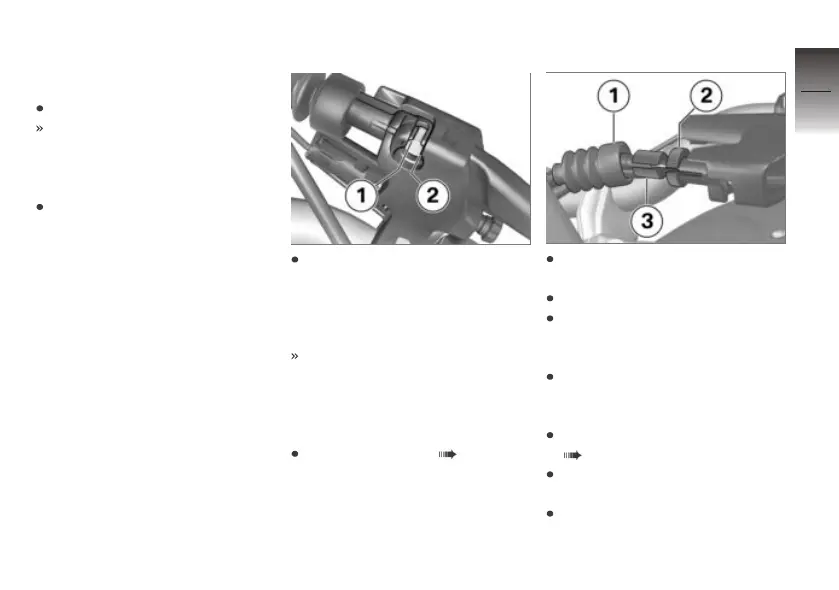

Checking the clutch play
Operate the clutch lever until
resistance can be felt whilst
observing the notch between
edges 1 and 2 in the manual
valve.
The inner edge 1 of the brake
cable should be able to move
up to outer edge 2 of the
handbrake fitting.
Clutch play is out of tolerance:
Adjust clutch play ( 99).
Adjust clutch play
Move the rubber grommet 1 to
one side.
Slacken nut 2.
To increase clutch play: screw
the adjusting screw 3 into the
manual valve.
To reduce clutch play: un-
screw the adjusting screw 3
from the manual valve.
Checking the clutch play
( 99).
Tighten nut 2 while holding the
adjusting screw 3 in position.
Fasten the rubber grommet 1
over the nut.
