BMW F800R - Multifunction Display

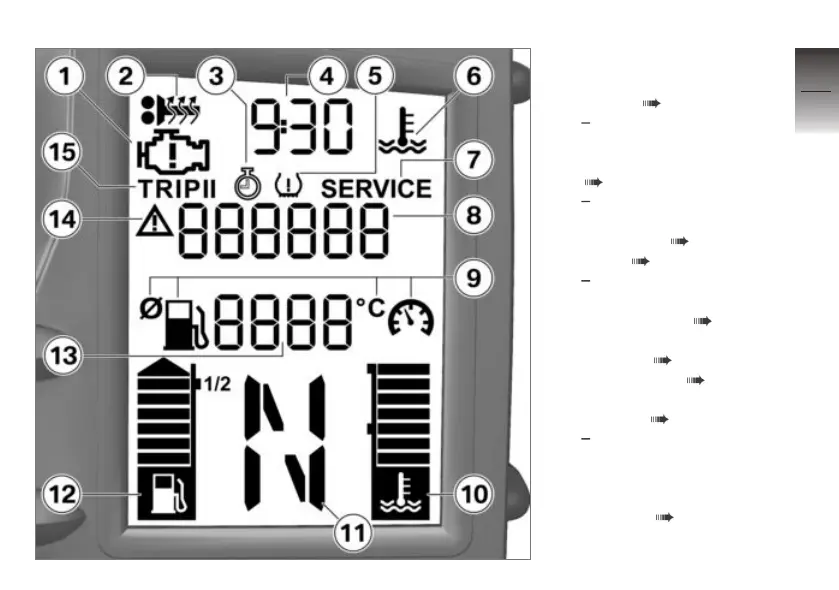

Multifunction display
1 Warning for engine elec-
tronics ( 27)
2 with heated handlebar
grips
OE
Heated handlebar grips
( 48)
3 with on-board com-
puter
OE
Stopwatch ( 45)
4 Time ( 44)
5 with tyre pressure monit-
oring (RDC)
OE
Tyre pressure ( 35)
6 Warning for coolant tem-
perature ( 26)
7 Serviceability ( 32)
8 Values area for status in-
dicators ( 42)
9 with on-board com-
puter
OE
Symbols explaining the
readings shown in the val-
ues area ( 33)
3
21
z Status indicators
