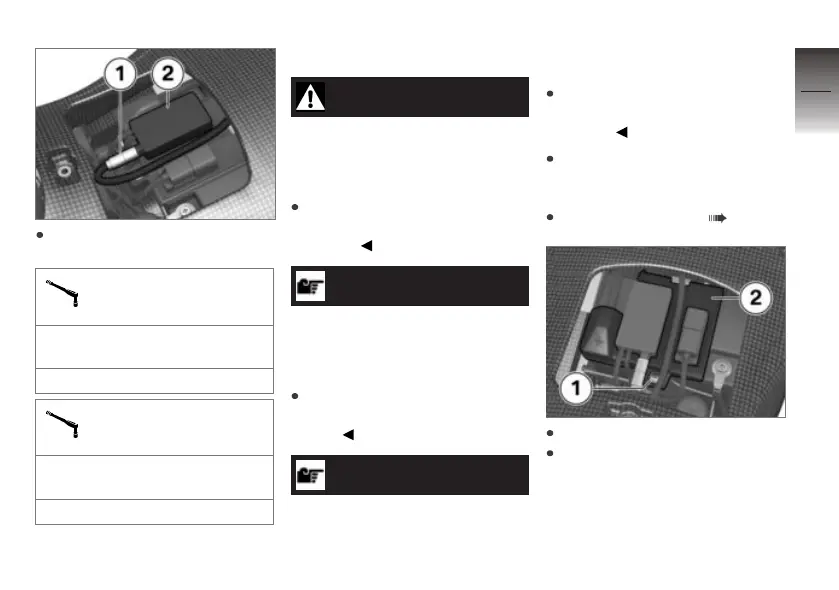

Connect connector 1 to data
logger 2.
Tail section with tank
cover on rear frame
Thread-locking compound:
Loctite 243, Medium-firm
6 lb/ft (8 Nm)
Tail section on rear
frame
Thread-locking compound:
Loctite 243, Medium-firm
6 lb/ft (8 Nm)
Jump-starting
CAUTION
Touching live parts of the ig-
nition system when the en-
gine is running
Electrocution
Do not touch parts of the igni-
tion system when the engine is
running.
ATTENTION
Contact between crocodile
clips of jump leads and mo-
torcycle
Danger of short circuit
Use jump leads fitted with fully
insulated crocodile clips at both
ends.
ATTENTION
Jump-starting with a voltage
higher than 12 V
Damage to the motorcycle's
electronics
The battery of the donor vehi-
cle must not exceed a voltage
of 12 V.
Do not disconnect battery from
onboard electrical system for
jump-starting procedure.
Remove rider's seat ( 38).
Remove the screw 1.
Unhook battery carrier 2, lift
and hang to the side.
9
133
z Maintenance

BMW HP4 RACE Specifications

General

Displacement	999 cc
Torque	120 Nm at 10, 000 rpm
Fuel Capacity	17.5 liters
Seat Height	831 mm
Engine Type	Water-cooled inline 4-cylinder 4-stroke engine, four titanium valves per cylinder, BMW ShiftCam
Power	215 hp (158 kW) @ 13, 900 rpm
Transmission	6-speed
Frame	Carbon fiber
Weight	171 kg (dry)
Front Suspension	Öhlins FGR 300 upside-down fork
Rear Suspension	Öhlins TTX 36 GP
Brakes	Brembo GP4 PR monoblock calipers, dual 320 mm discs (front), Brembo 4-piston caliper, single 220 mm disc (rear)
