Displays for the

mechatronics

technician

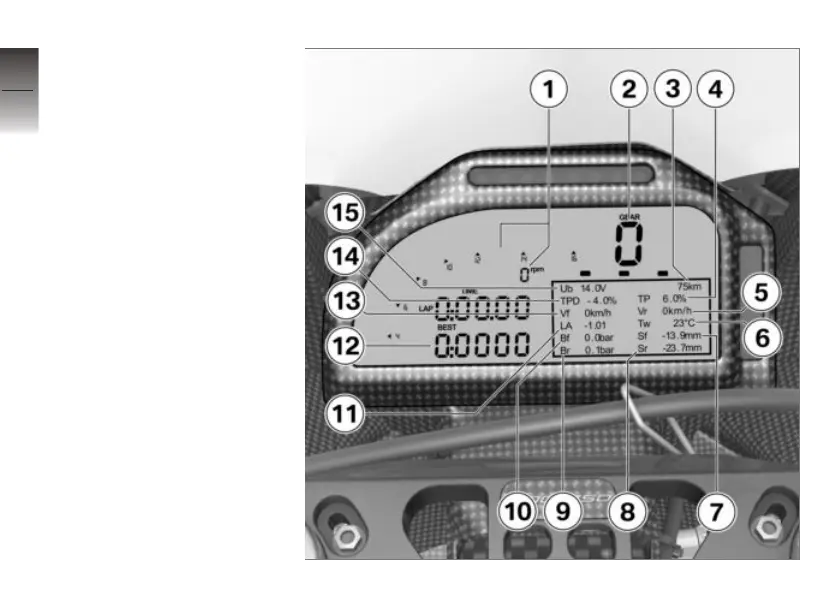

Multifunction display

mechatronics technician

1 Tachometer

2 Gear indicator

3 Odometer

4 Throttle valve opening an-

gle

5 Rear wheel speed

6 Coolant temperature

7 Front spring travel (with

mounted sensor)

8 Rear spring travel (with

mounted sensor)

9 Rear brake pressure (with

mounted sensor)

10 Front brake pressure (with

mounted sensor)

11 Inclined position

12 Best lap time

13 Front wheel speed

In the pit

Questions and Answers:

Need help?

Do you have a question about the BMW HP4 RACE and is the answer not in the manual?

General

Displacement	999 cc
Torque	120 Nm at 10, 000 rpm
Fuel Capacity	17.5 liters
Seat Height	831 mm
Engine Type	Water-cooled inline 4-cylinder 4-stroke engine, four titanium valves per cylinder, BMW ShiftCam
Power	215 hp (158 kW) @ 13, 900 rpm
Transmission	6-speed
Frame	Carbon fiber
Weight	171 kg (dry)
Front Suspension	Öhlins FGR 300 upside-down fork
Rear Suspension	Öhlins TTX 36 GP
Brakes	Brembo GP4 PR monoblock calipers, dual 320 mm discs (front), Brembo 4-piston caliper, single 220 mm disc (rear)
