BMW X5 (E53) LHD - Audio Module Holder Installation

EN/19
9. To install the audio module holder
(only required for cars without an audio module holder)
Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001
Installation instructions No. 01 29 0 030 090
F 53 0741 B
41
40
15

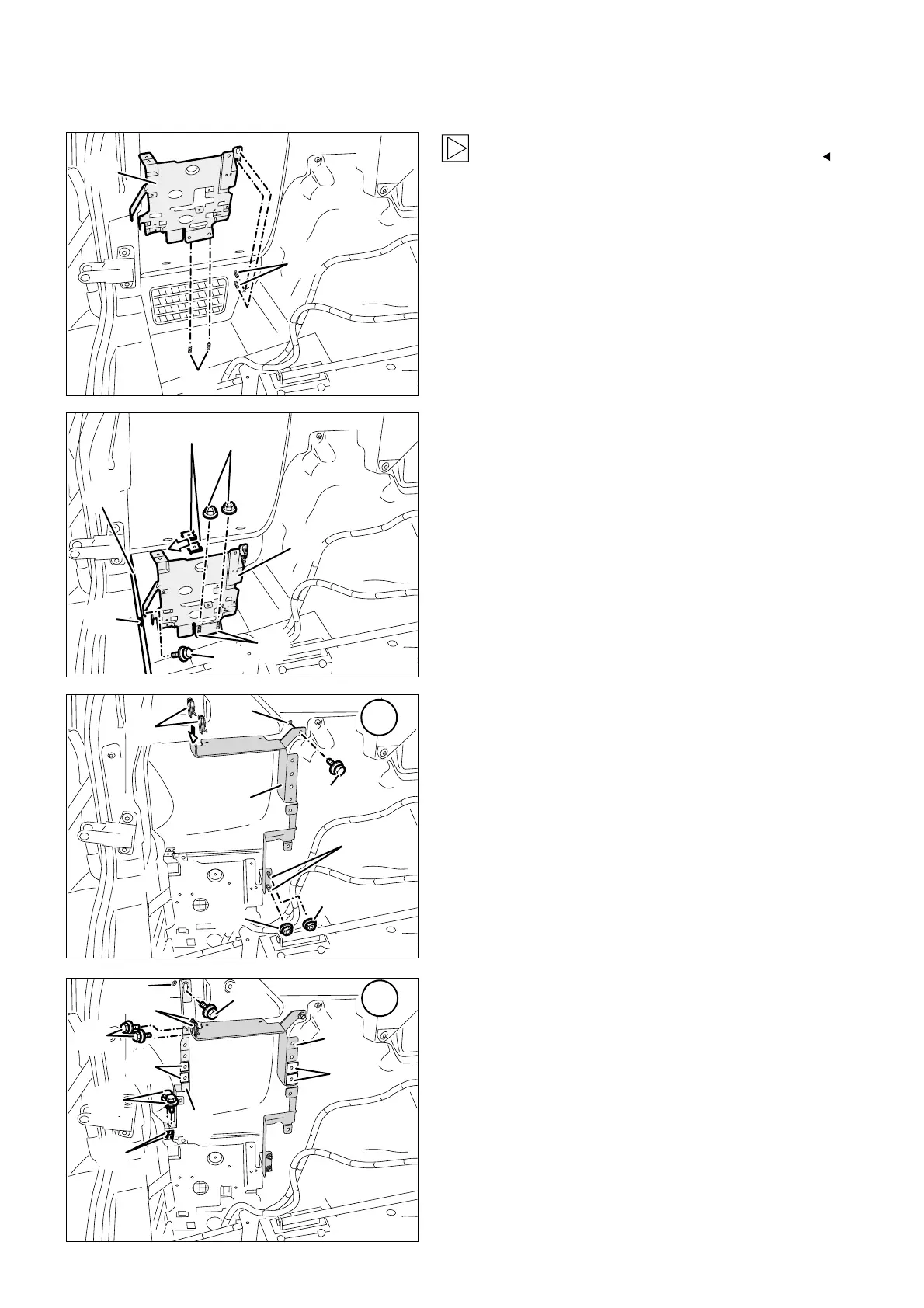

The figure shows the rear left of the boot.
Place the amplifier holder (15) on the two bottom
stud bolts (40) and the two side stud bolts (41).
Secure the amplifier holder (15) to the stud
bolts (30) using two hexagonal nuts with washers
M6 (13) and to the M6 thread (41) in the inside
closing panel (42) using a hexagonal screw with
washer M6x12 (23).
Then place two speed nuts M5 (22) on the
amplifier holder (15).
F 53 0742 B
15
13
40
22
42
41
23
F 53 0743 B
16
40
23
41
22
13
13
42
Place base carrier, front, (16) on the two set
screws (40) at the side and screw it to set
screws (40) with two hex nuts with washers M6
(13).
The base carrier, front, (16) should be additionally
screwed with a hexagon-head screw with washer
M6x12 (23) into the screw thread M6 (41) in the
side part, rear left (42).
Then put two plug-in nuts M5 (22) on the base
carrier, front, (16).
F 53 0744 B
16
22
21
22
21
23
22
17
22
41
40
Secure the rear base holder (17) using four
hexagonal screws with washers M5x14 (21) to
the speed nuts M5 (22) you positioned earlier
and with one hexagonal screw with washer
M6x12 (23) to the M6 thread (40) in the side
section at the rear left (41).
Then place two speed nuts M5 (22) on to the
front base holder (16) and two more on to the
rear base holder (17).
