BMW X5 (E53) LHD - On-board Monitor and Wiring Harness Installation

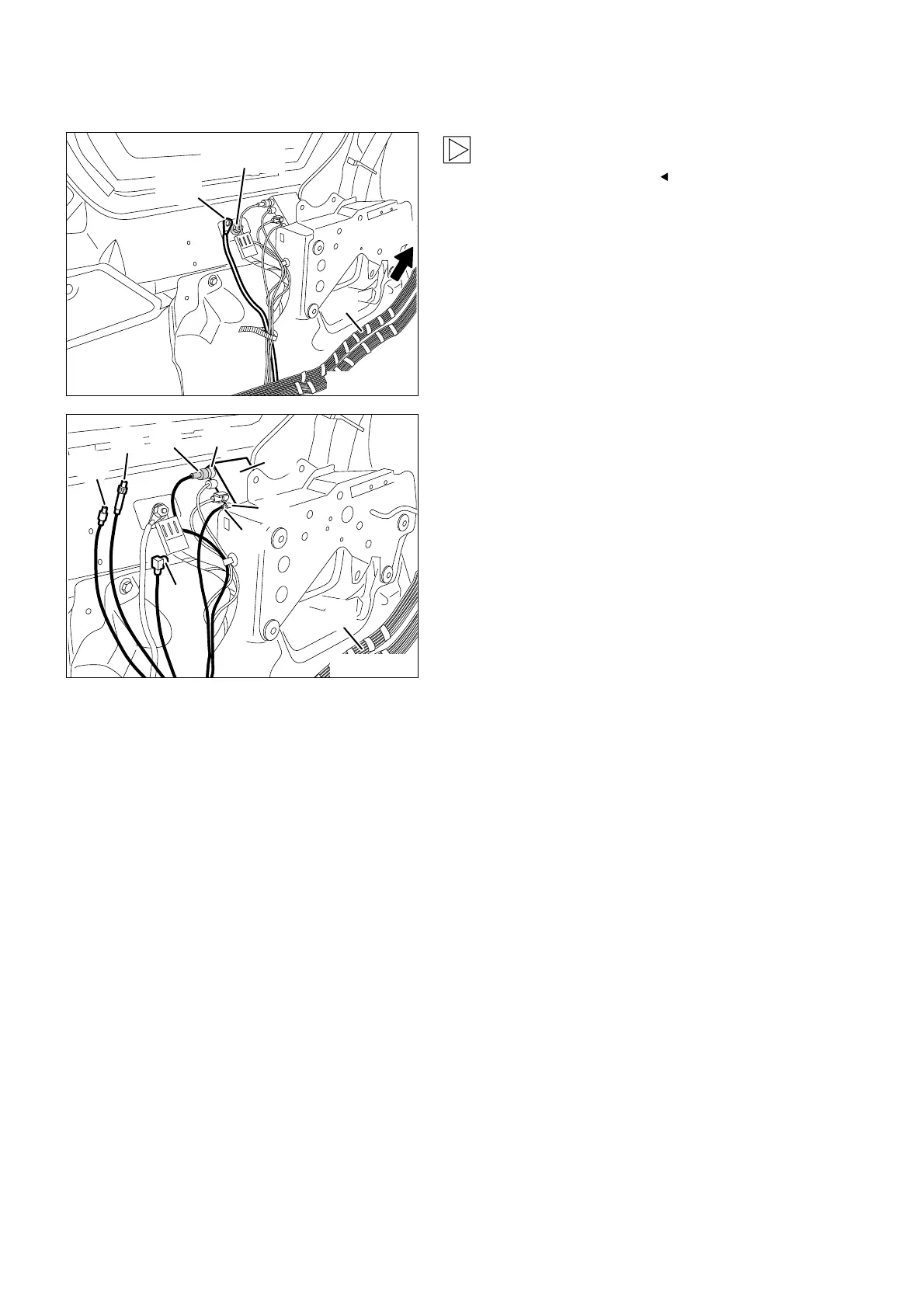

The figure shows the boot at the rear left
above the left wheel arch.
Screw branch A10, cable eyelet, 6 mm diameter
on the on-board monitor wiring harness A,to
earth post X13016 above the left wheel arch.
Lay branches A1 to A6 along the standard wiring
harness to the front on the left next to the centre
console and secure it with cable ties.
7. To install the on-board monitor wiring harness and on-board monitor
F 53 0725 B
A10
X13016
A
A1-A6
F 53 0726 B
40
A7
A9
A8
42
41
43
44
A
Screw off the existing coaxial pin housing (40)
from the antenna amplifier (41) and bind it back
(no longer required).
Screw branch cable A9, coaxial pin housing, of
the on-board monitor wiring harness A onto the
freed coaxial socket housing (42) of the antenna
amplifier (41).
Unplug existing coaxial socket housing (43) from
the antenna amplifier (41) and bind it back (no
longer required).
Plug branch cable A7, coaxial socket housing,
onto the freed coaxial pin housing (44) of the
antenna amplifier (41).
Bind back branch cable A8, angled coaxial
socket housing (is only connected in association
with the installation of the video module and the
TV amplifier).
EN/13
Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001
Installation instructions No. 01 29 0 030 090
