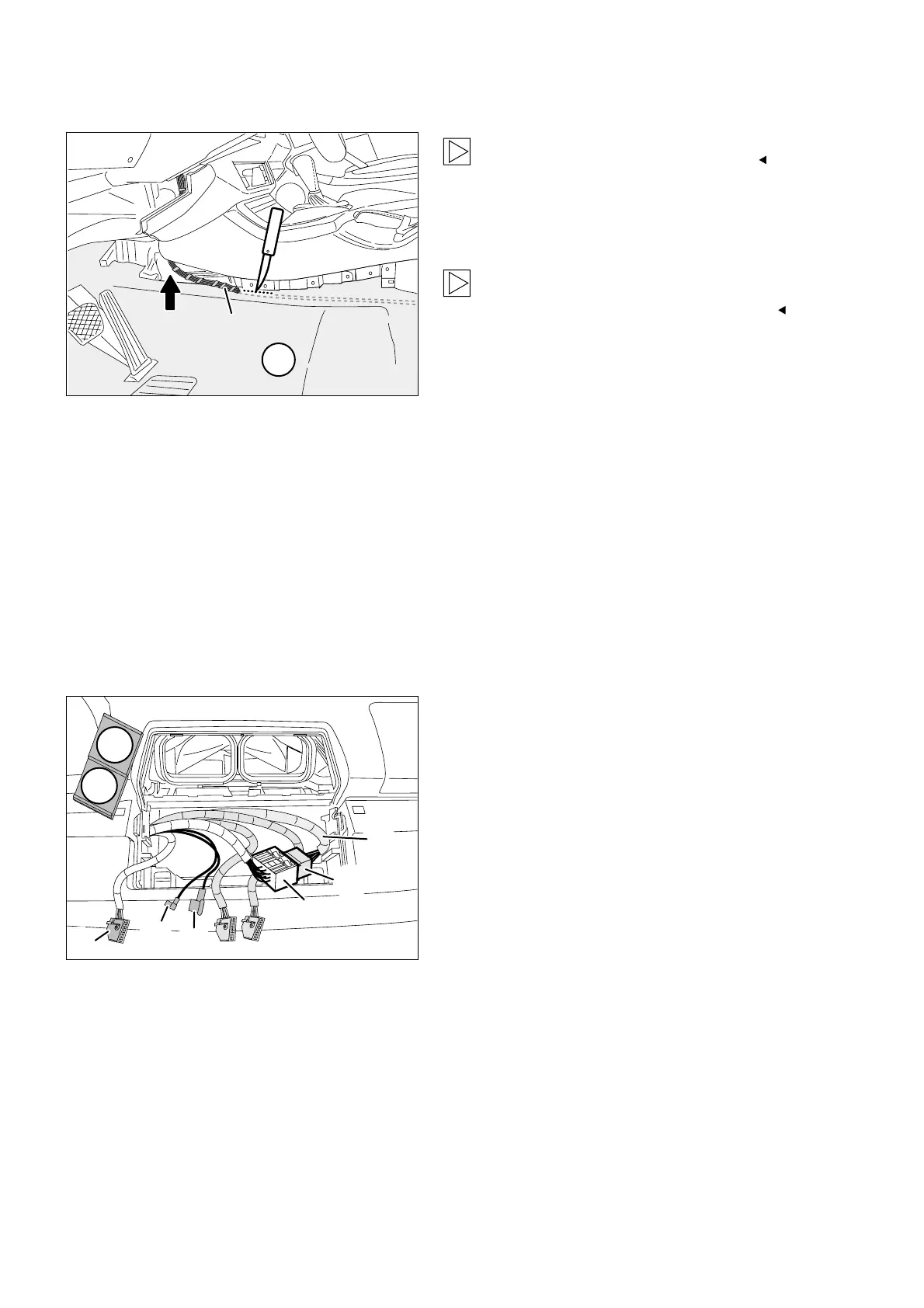

Connect branch A3, black 17-pin plug casing on
the on-board monitor wiring harness A, to the
existing radio connection plug X18126.
Affix a protective strip (27) to the second
protective strip (27) and then affix them to the
wiring harness so that they enclose the existing
angled coaxial socket casing (40), the black
coaxial socket casing (41) (aerial connection), the
connection plug for the control (42) and the plug
connection A3+X18126.
The enclosed connections and the plug
connection are no longer required and are to be
placed behind the heating control.
7. To install the on-board monitor wiring harness and on-board monitor
F 53 0728 B
A3
A
41
42
X18126
40
27
27
EN/14
Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001
Installation instructions No. 01 29 0 030 090
The figure shows the left footwell.
Carefully cut the carpet (40), as shown in the
figure, using a universal knife to make it easier to
place it around the on-board monitor wiring
harness A.
When you cut the carpet ensure that you do
not damage the cables/lines beneath it.
Install branch cable A1 to A6 to installation
location of the on-board monitor and fasten with
cable straps.
Install branch cable A4 behind the glove box to
the installation location of the light module in the
A-pillar, bottom right, and fasten with cable
straps.
Then install branch cable A5 and A6 to the
installation location of the instrument cluster and
fasten with cable straps.
