101

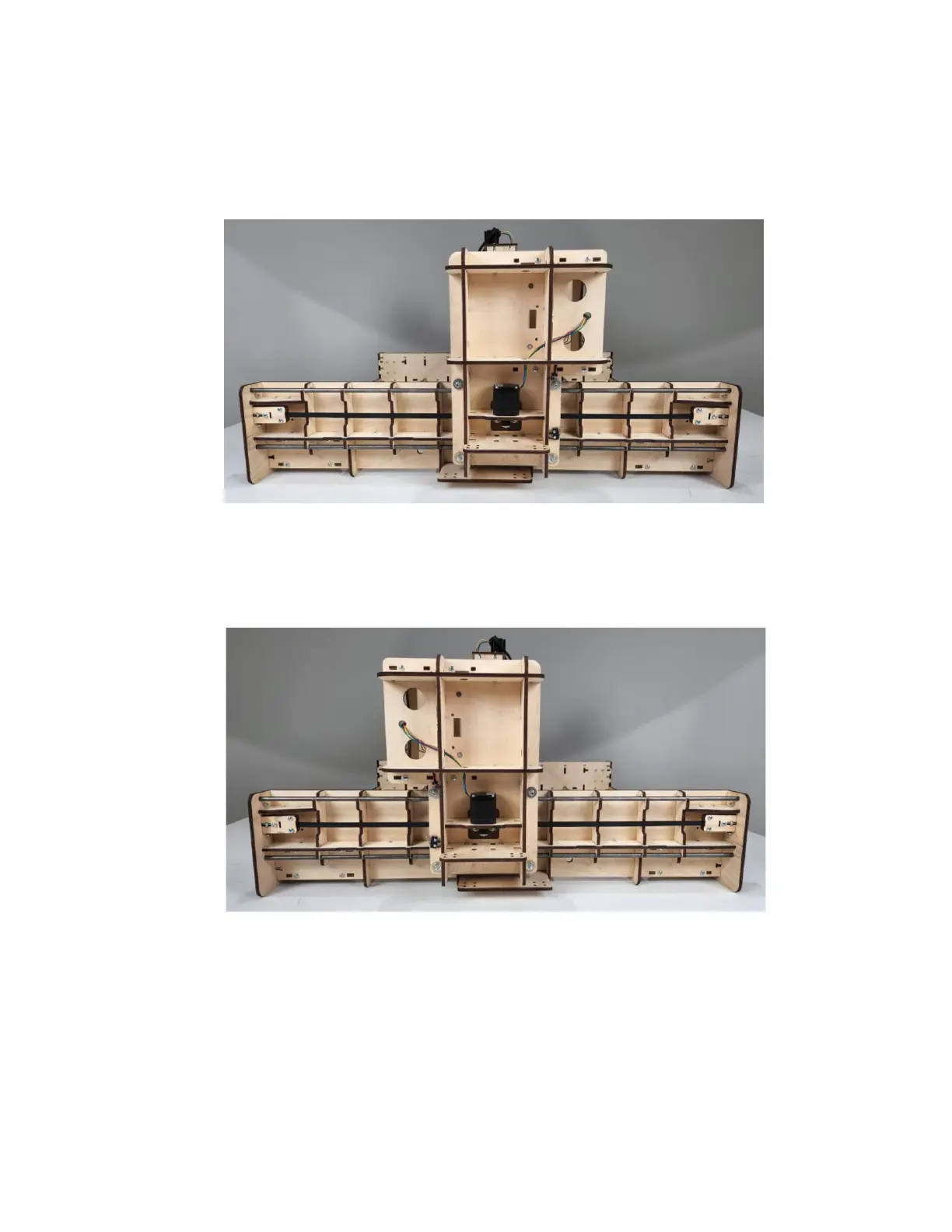

Step 3k Attach a Belt Retainer to the Frame Support
end onto the M5 Square Nut.
Step 4 Repeat these same steps to install the X2 Belt
on the other side of the Gantry.
