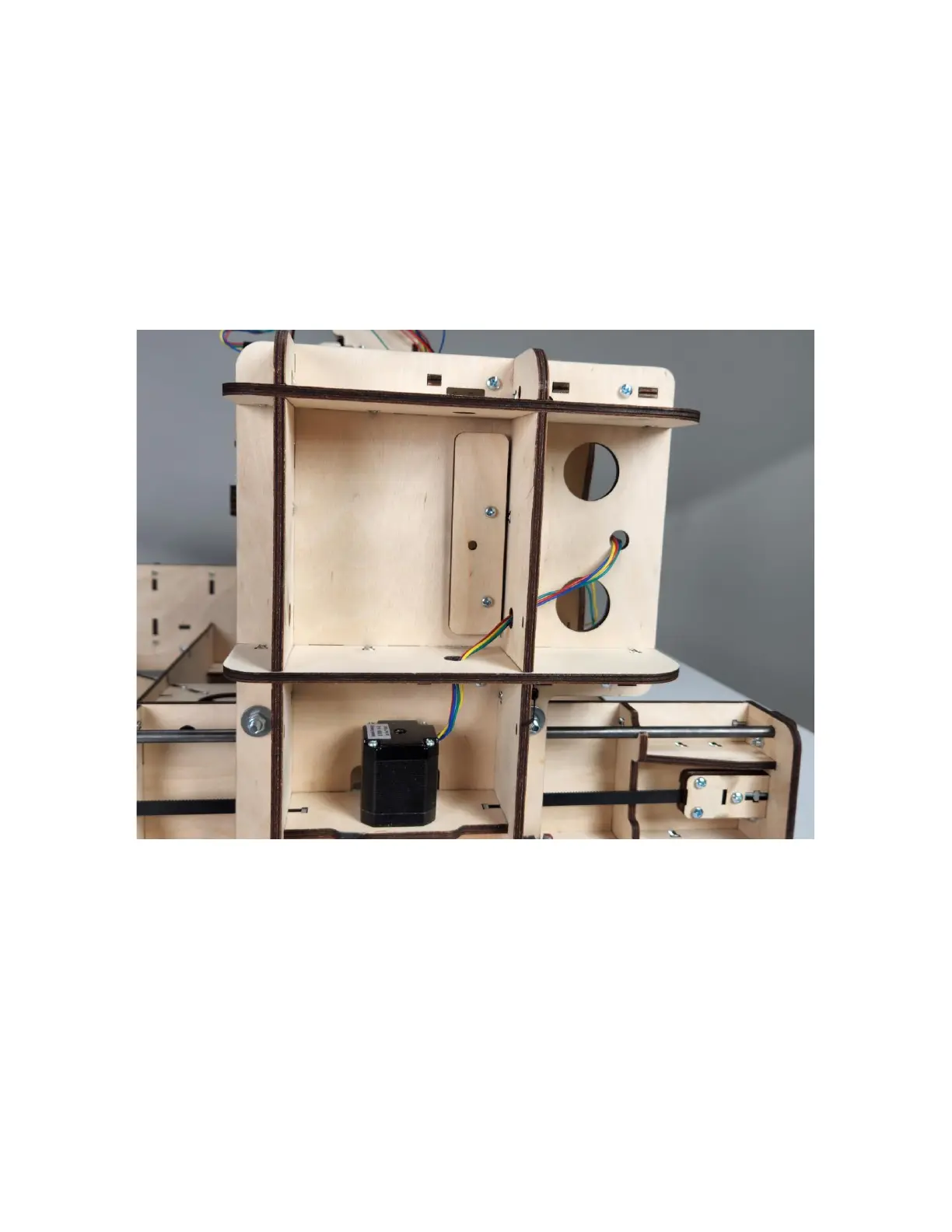

Step 5 Installing the Y Axis Belt.

Step 5a Install the Y Rail Stops (QR1) and secure

with two M4 x 20 Machine Screws and

Lock Nuts for each side of the Gantry.
