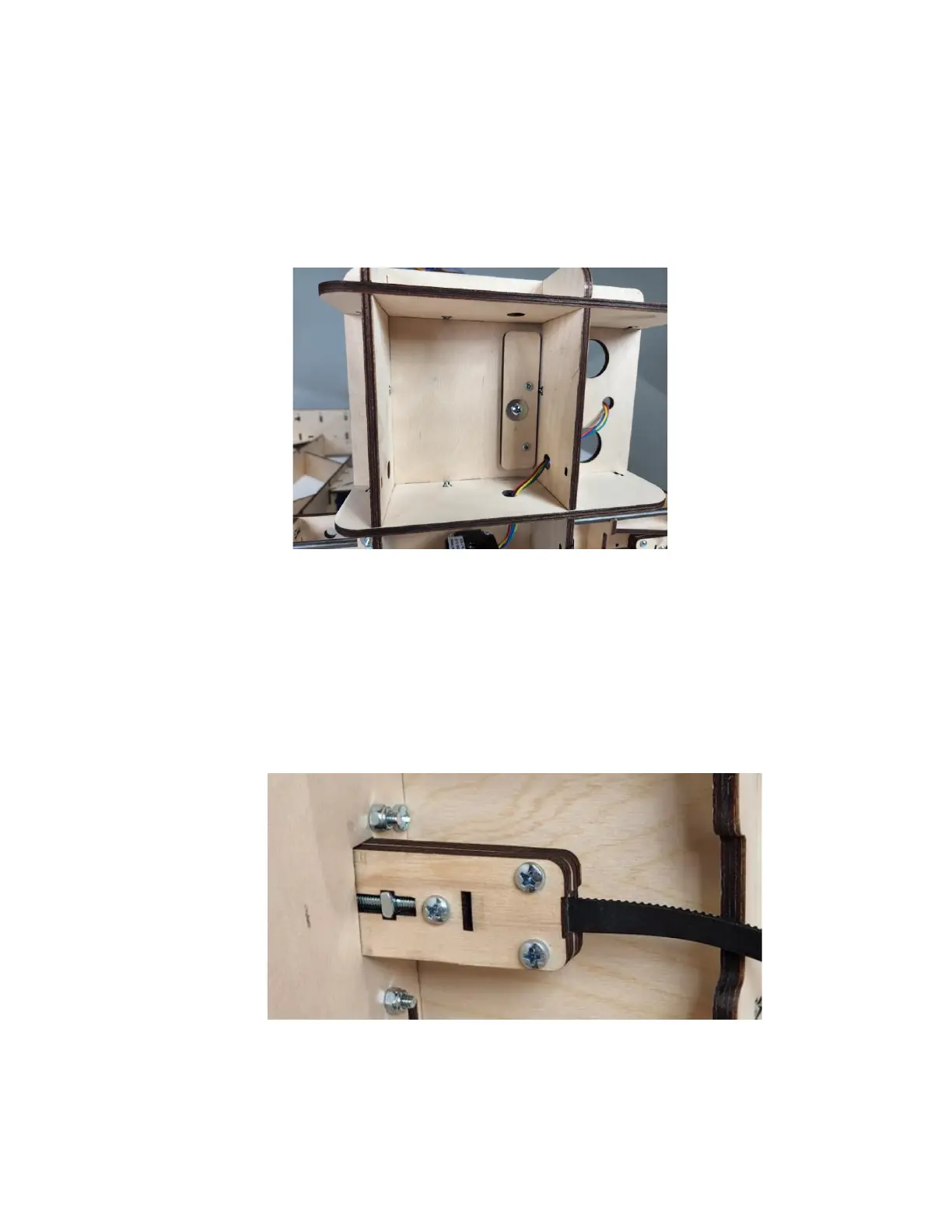

Step 5b Insert a M5 x 30 Machine Screw with
Washer, through the Y Rail Stop and
thread a M5 Square Nut on the exposed
threads. Repeat for other Gantry Side.
Step 5c Slip the Belt Retainer end over the exposed
thread so that the Nut is seated in the cutout
in the Retainer. Be sure the smooth side of the
Belt is visible with the teeth oriented toward
the Gantry Frame.
