106

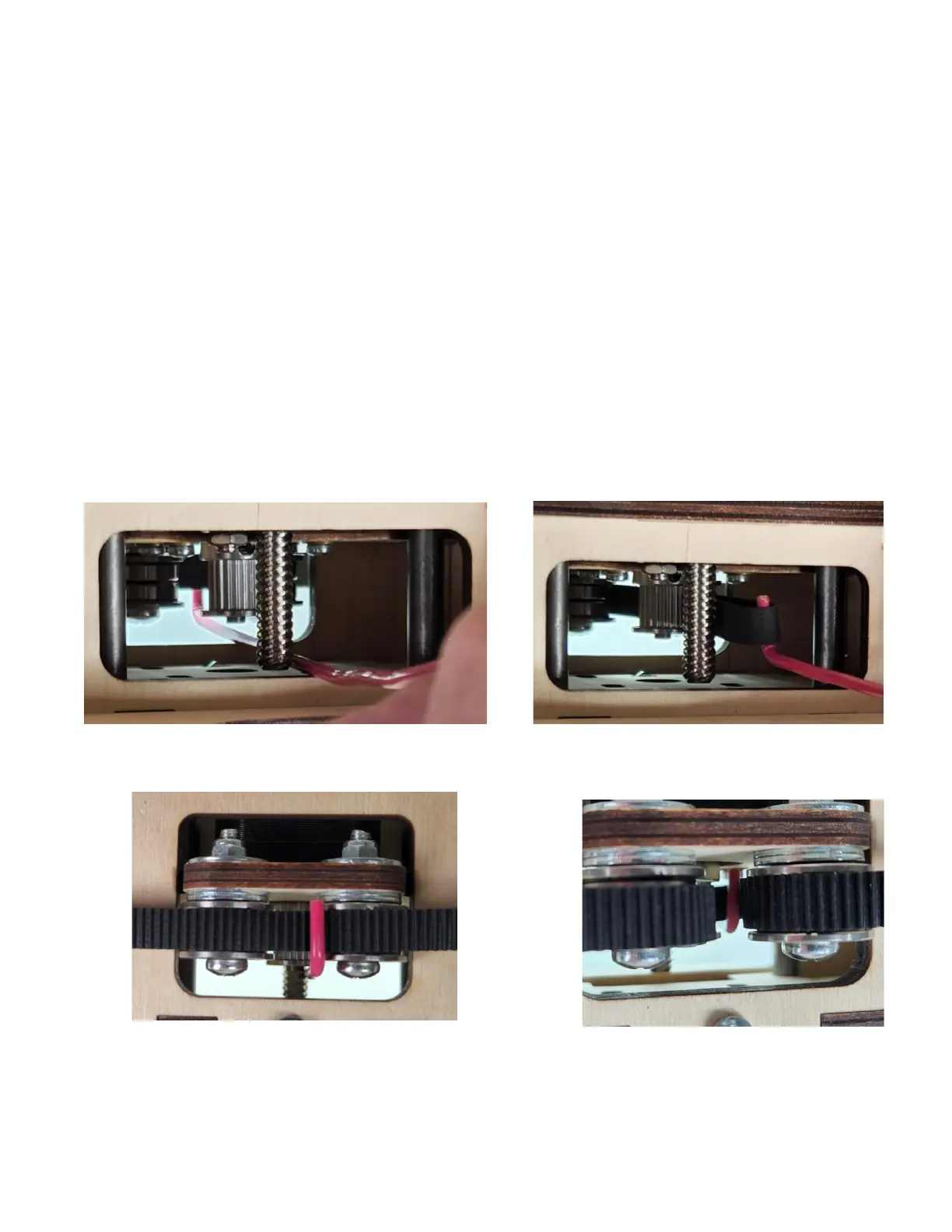

Step 5g Using a long Allen Wrench or a stiff
piece of wire (e.g., AWG 12 solid
core copper wire), bend a small
hook into one end of the wire.
Carefully insert the hook through
the front of the Z Assembly and
hook the wire over the Belt as
shown. Pull the Belt between the
Idler Bearings and create a loop of
Belt Material Be sure to keep
tension one the belt so it doesn't
slip off the Idler Bearings
.
Back View
Front View
