107

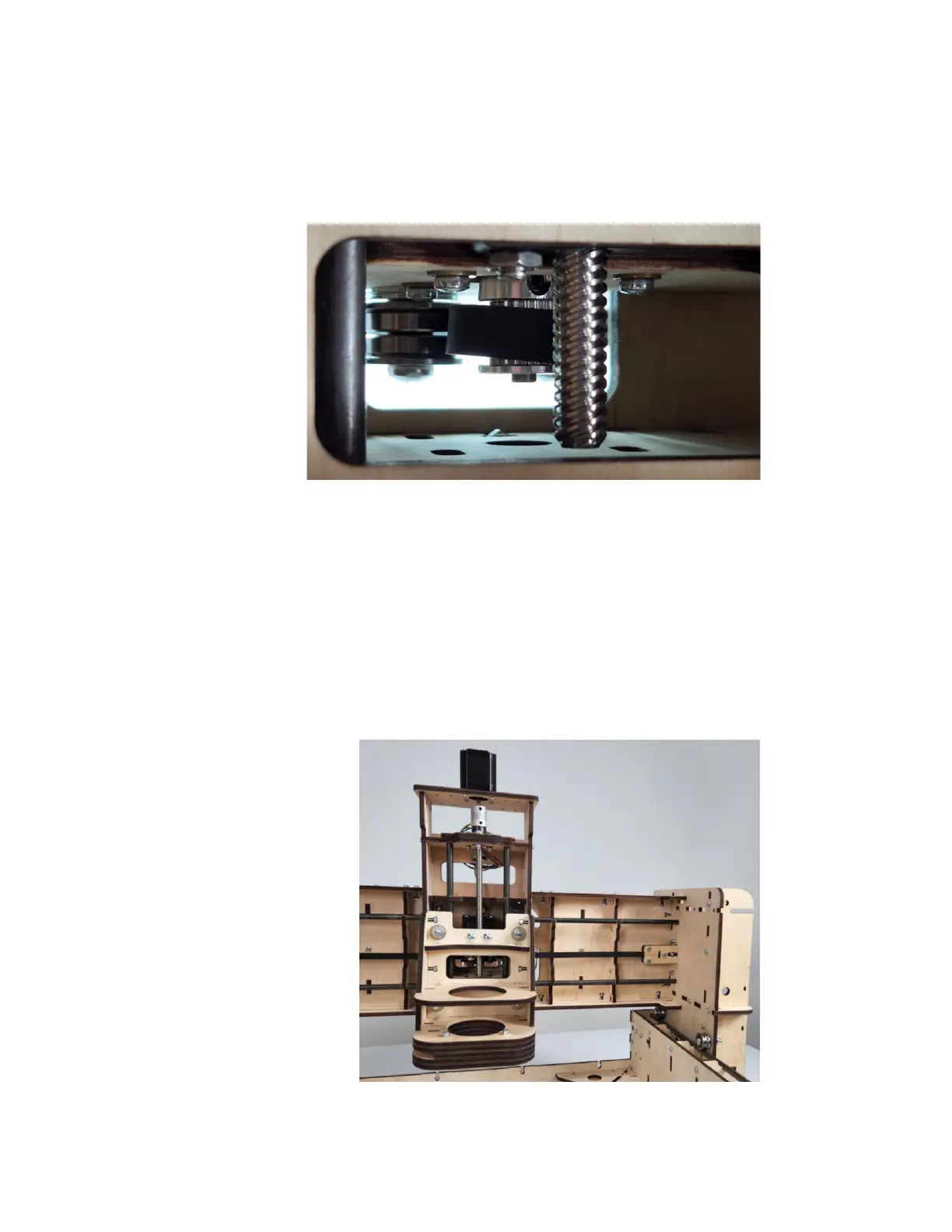

Step 5h Loop the Belt over the GT2 Pulley.
Hold the Y carriage in place and pull
the Belt snug.
Step 5i Slip the Belt Retainer end over the
exposed thread so that the Nut is seated
in the cutout in the Belt Retainer and
tighten the Belt to remove any
slackness.
