110

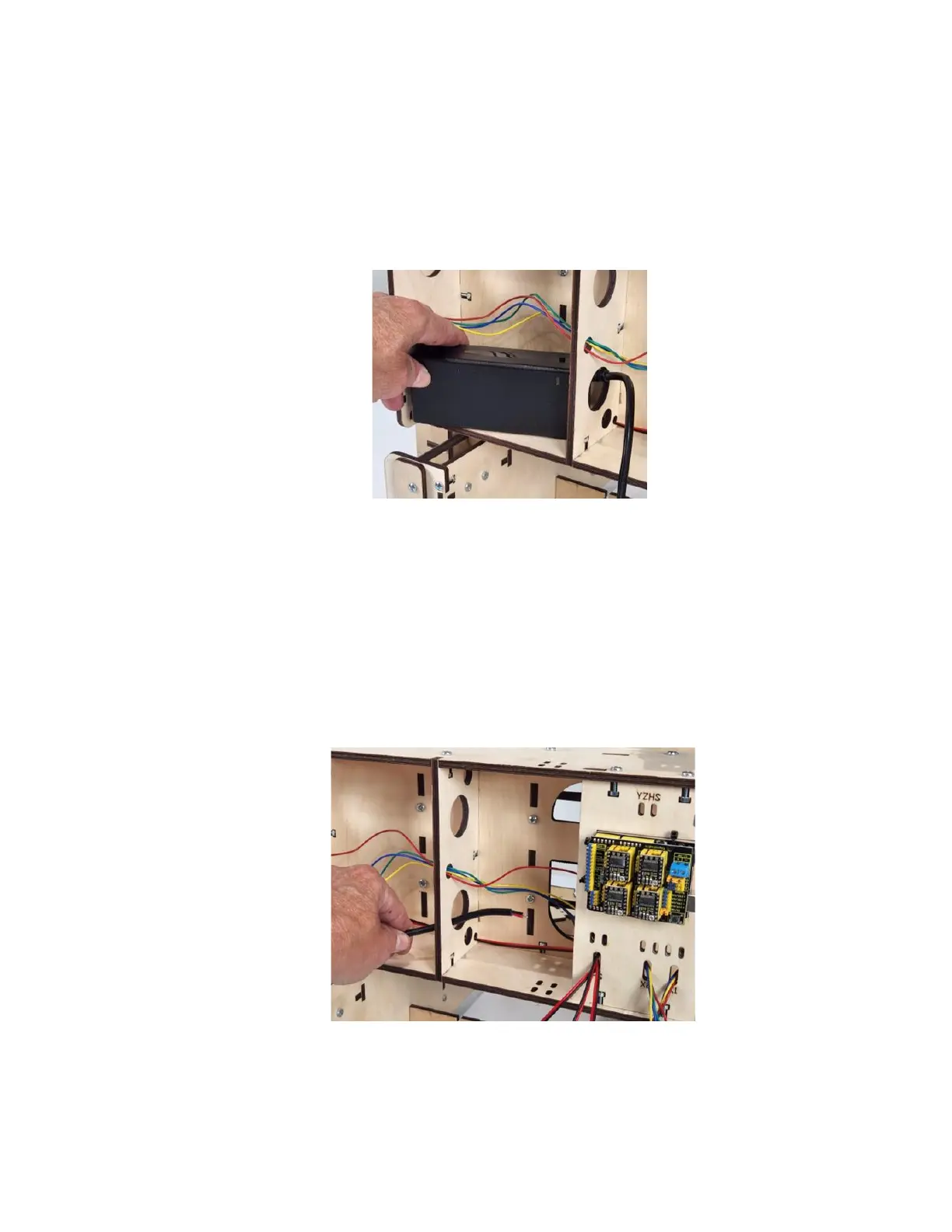

Step 7a Thread the power supply cord behind the
Gantry Back Support and through the
large hole in the Gantry Back Brace as
shown.
Step 7b Continue threading the Power Supply
cord behind the Gantry Back Support and
through the large hole in the Gantry Back
Brace and past the Controller Support as
shown.
