BobsCNC QUANTUM MINI - Page 112

111

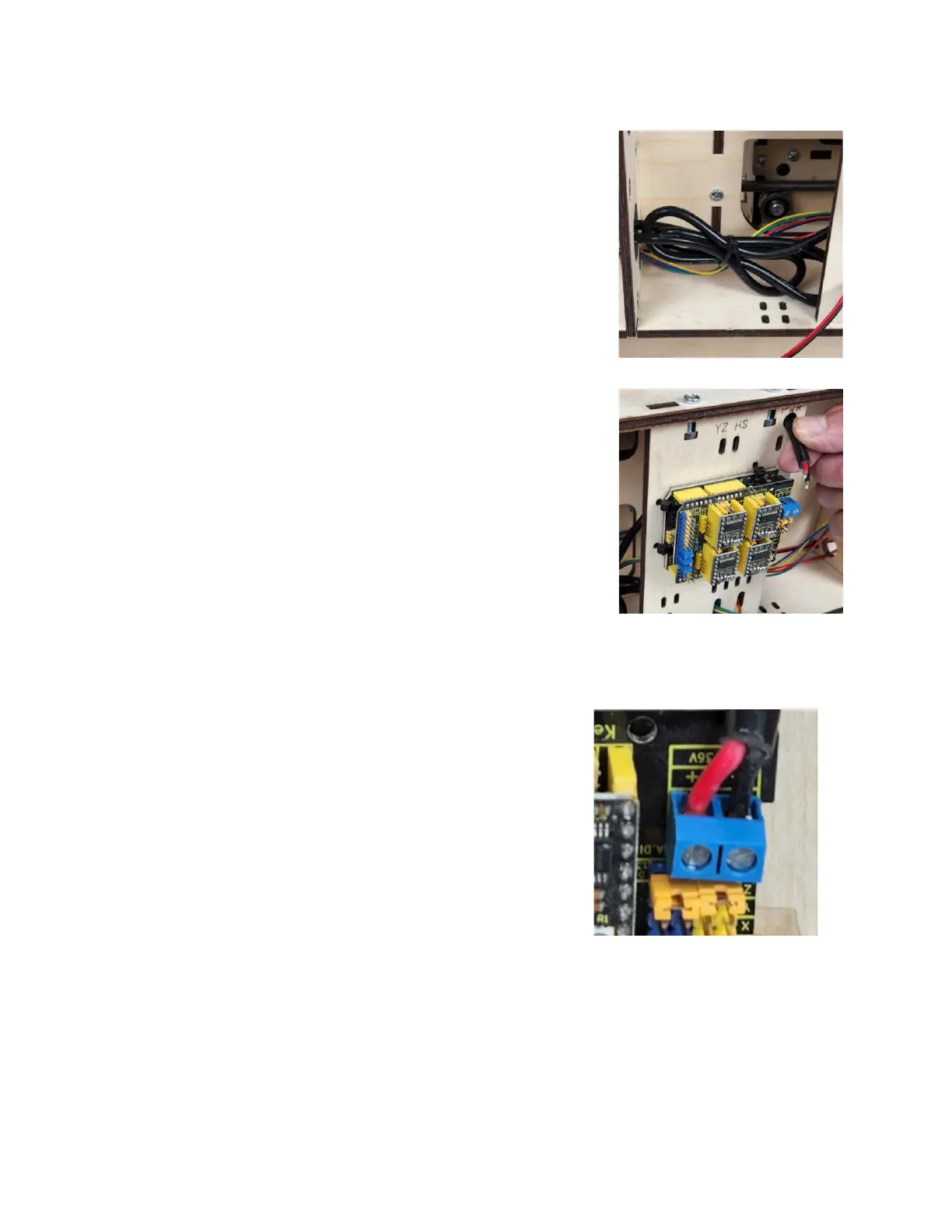

Step 7c Bundle the excess power
cord and secure with a
small Zip Tie.
Step 7d Thread the exposed power
cord end through the
“PWR” hole in the
Controller Support.
Step 7e IMPORTANT When
connecting the Power
Supply to the Controller,
make sure the red wire is
connected to the (+)
positive terminal and the
black wire is connected
to the (-) terminal.
