BobsCNC QUANTUM MINI - Page 120

119
Step 10 Connecting the Home Switches to the
Controller.
IMPORTANT. The Controller is mounted so that the PIN
Designations are upside down. It is very important to be certain
the Dupont Connectors at the ende of the wires cover the proper

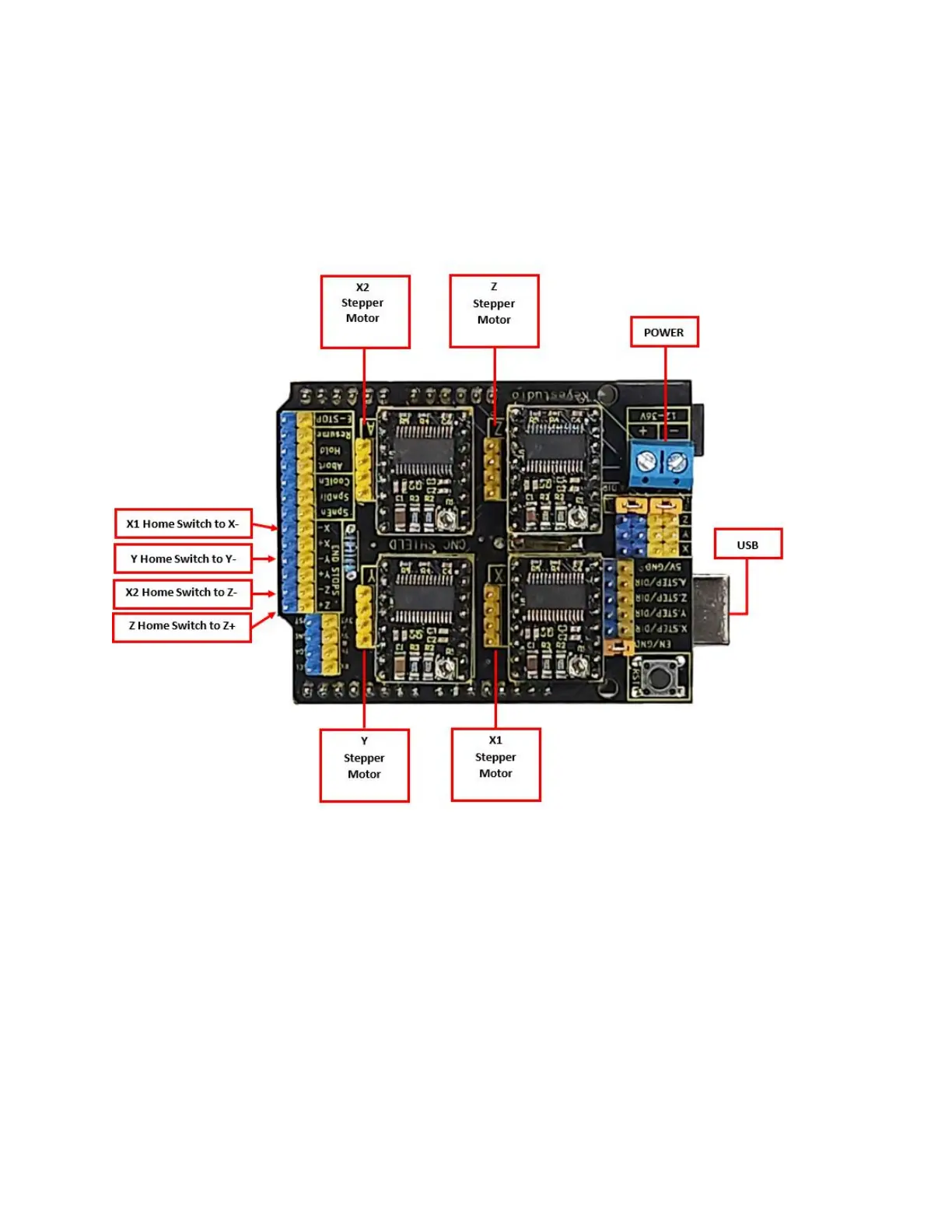

pins on the controller. Use the diagram below for reference
