120

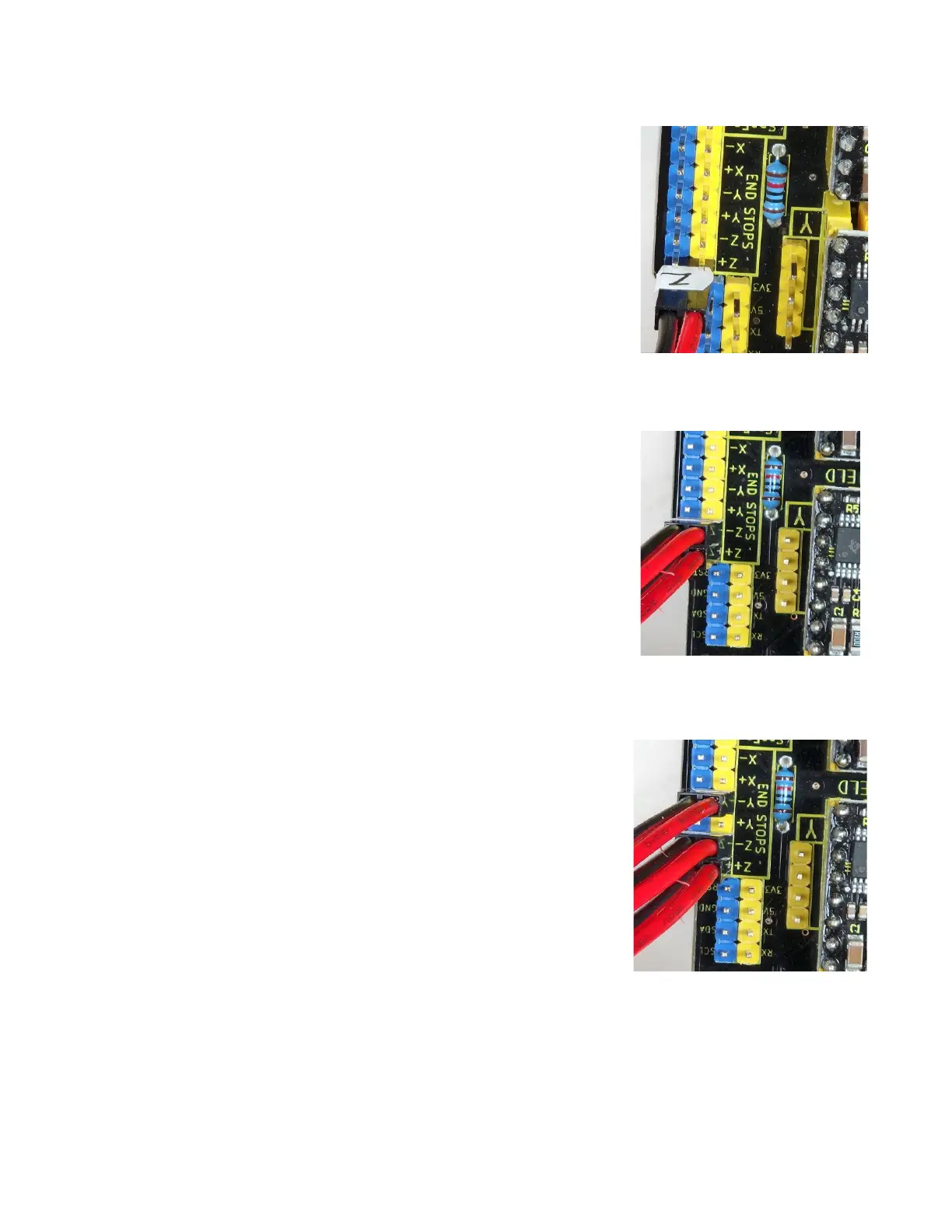

Step 10a Connect the Z Home Switch
to the Z+ plug on the
Controller.
Step 10b Connect the X2 Home Switch
to the Z- plug on the
Controller.
Step 10c Connect the Y Home Switch
to the Y- plug on the
Controller.
