BobsCNC QUANTUM MINI User Manual

127

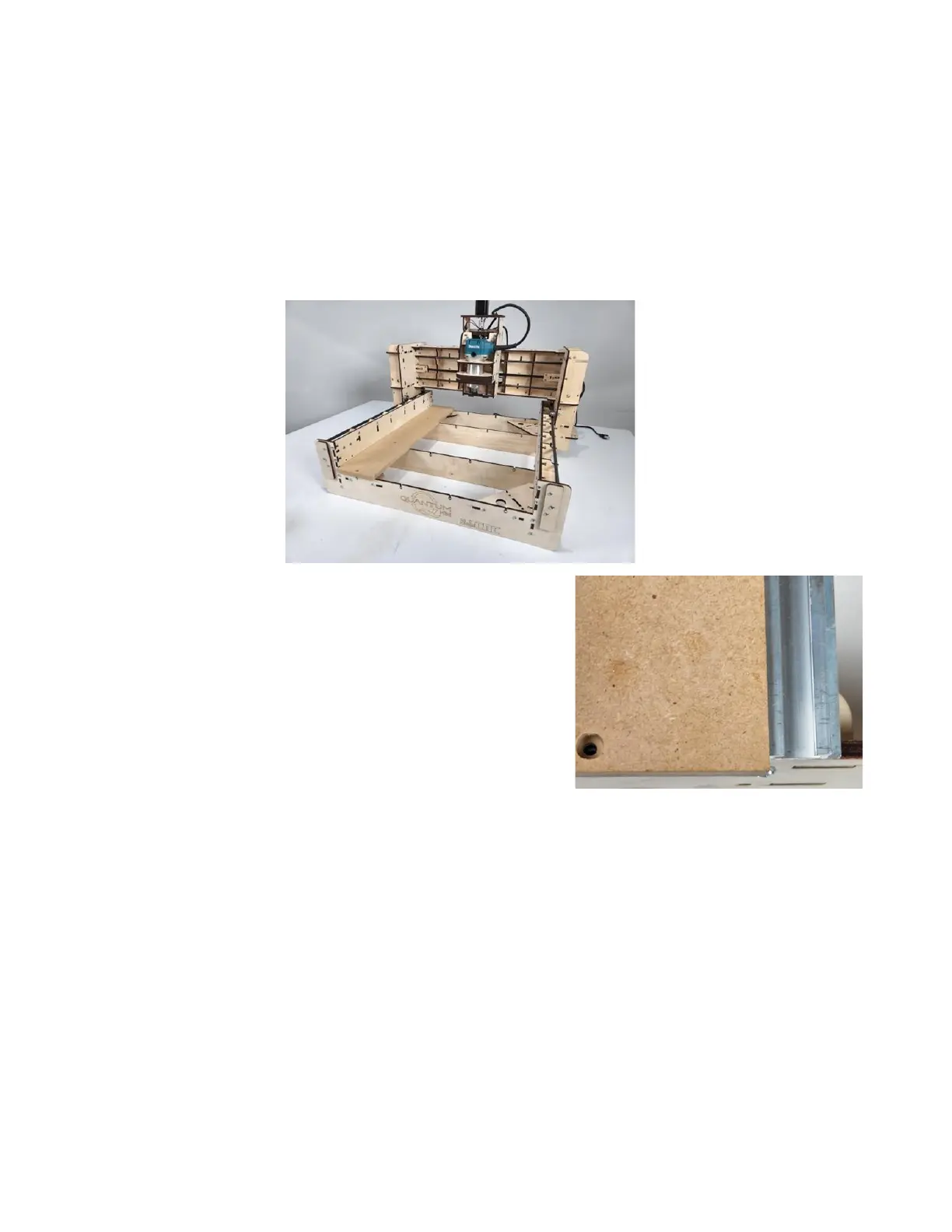

Step 2 Lay the first MDF Section against the left side of the
X Frame Assembly as shown. Make sure the
countersunk openings are facing up. Align the holes
with the installed M4 nuts beneath. The Machine
Screws that hold the Sections will be installed later.
Step 3 Lift the MDF Section and set
the flange of the Aluminum
T-Slot so that the MDF
covers it completely. Align
the front and back end of
the Aluminum T-Slot flush
with the front and back-end
panels as shown.
