Step 2 Mounting the Stepper Motors

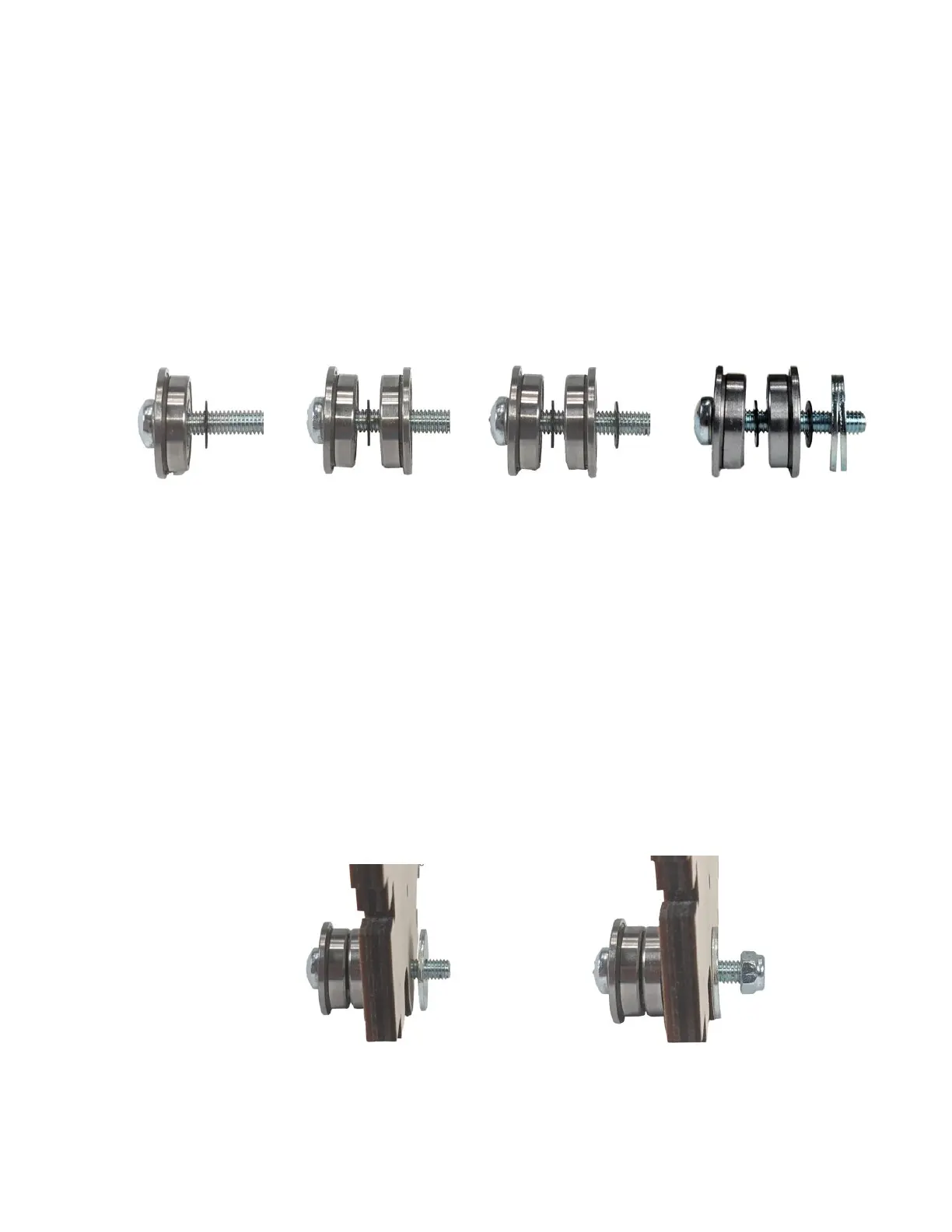

Step 2a Build four Idler Bearing Assemblies using

one (H48) M5 x 30 Machine Screw, two

(H86) Flanged Bearings, and two (H50)

Idler Fender Washers in the sequence

shown below.

Be sure the head of the Machine Screw

fits against the Bearing flange and the

other is mounted so that both flanges

are oriented outboard from each other.

Step 2b Insert the threaded shaft of Bearing

Assembly though the XY Stepper Motor

Mount (QR2) and secure with a M5 Lock

Nut (H49).
