13

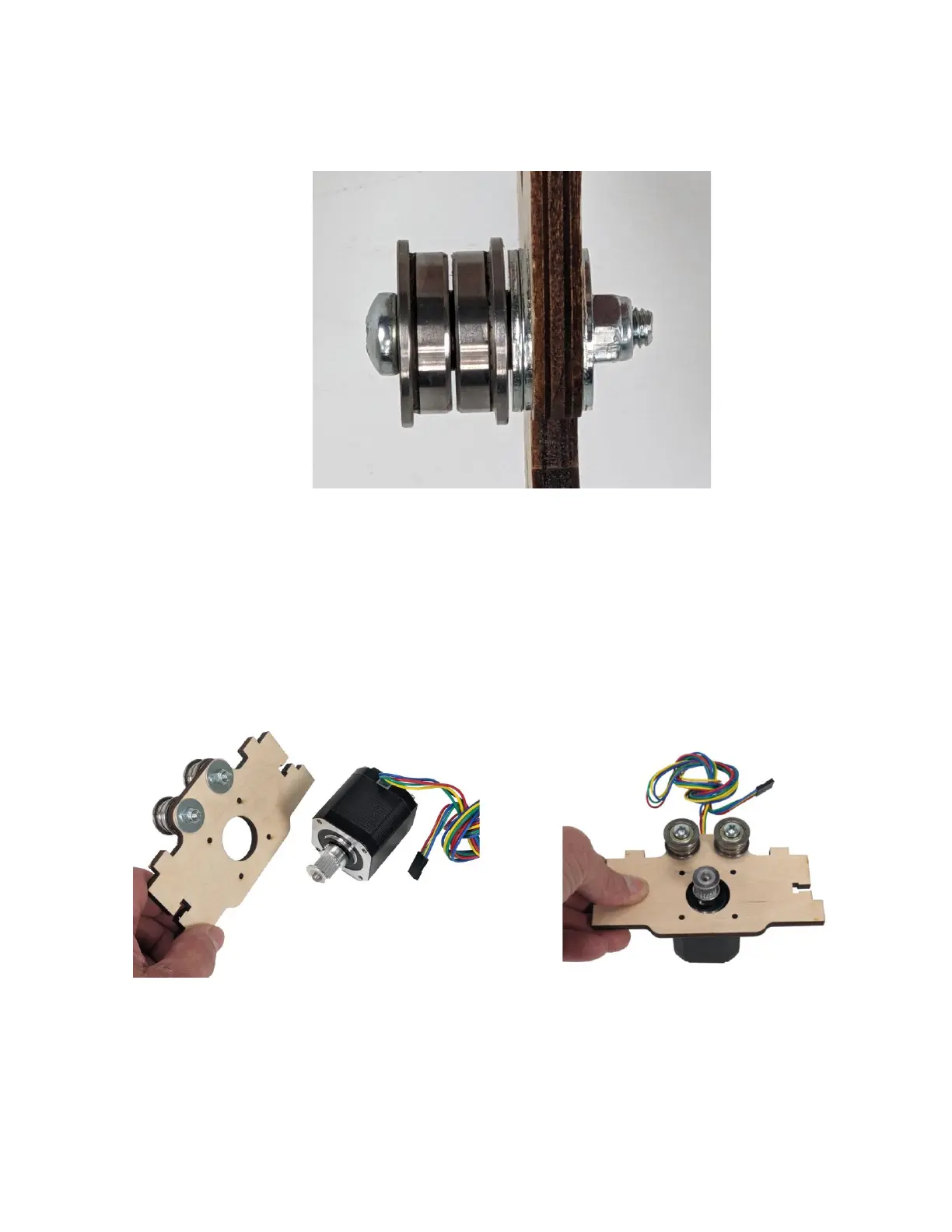

Repeat to install the remaining Idler
Assembly.
Step 2c Align the mounting holes of the Stepper
Motor with holes in the X, Y Stepper
Motor Assemblies.
