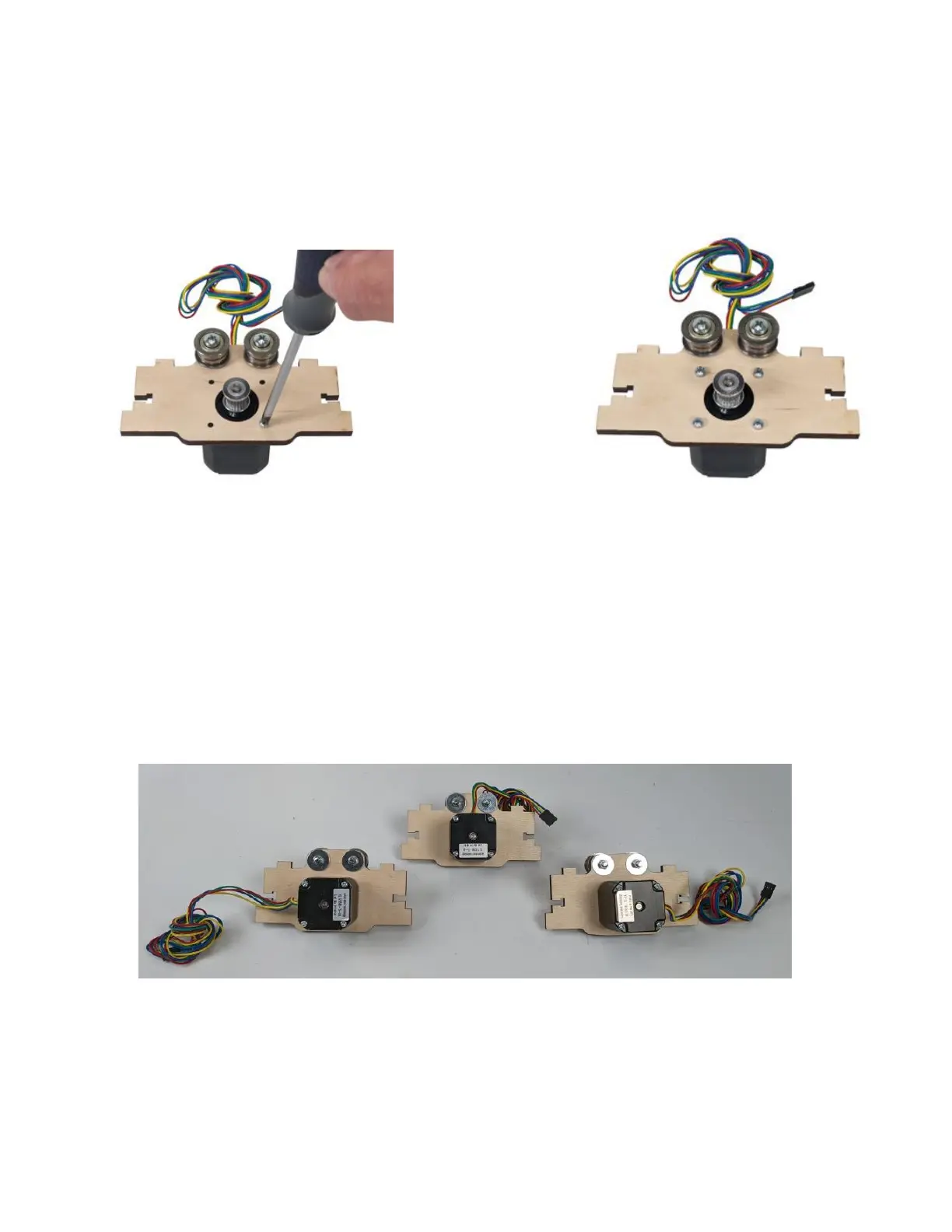

Secure the Stepper Motor to the Stepper
Motor mount with four M3 x 10 Machine
Screws (H37) with M3 Washers (H88).
NOTE: When viewed from the back, the Stepper Motor wires of
each Motor are oriented in three directions. The wires of the Y
Stepper Motor are centered between the Flanged Bearing and
run upward. The wires of the X1 and X2 Stepper Motor wires run
one to the left, the other to the right as shown below.
