15

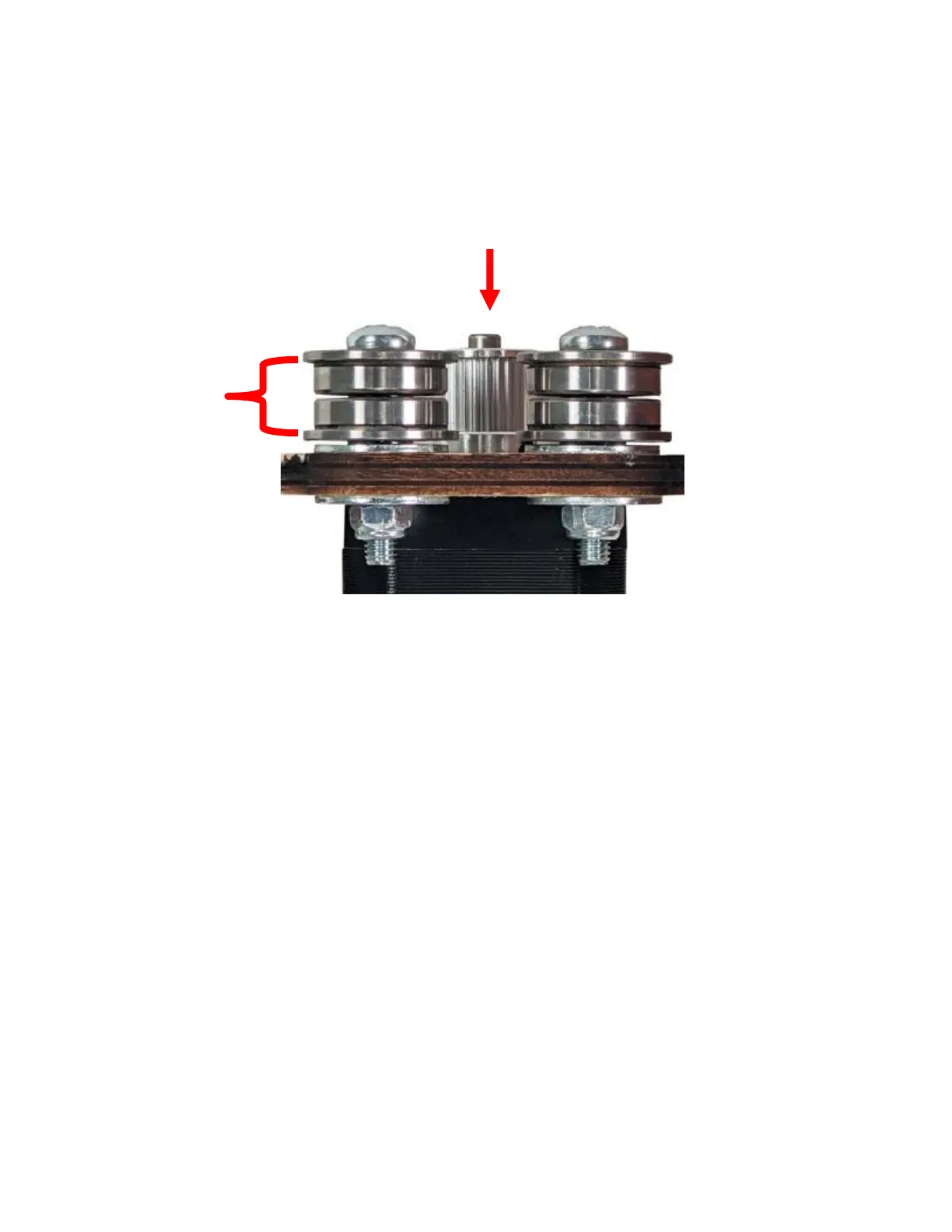

NOTE: When properly installed, the flanges of the Flanged
Bearings will frame the teeth of the Drive Pulley (see below).
Drive Pulley
Flanges
