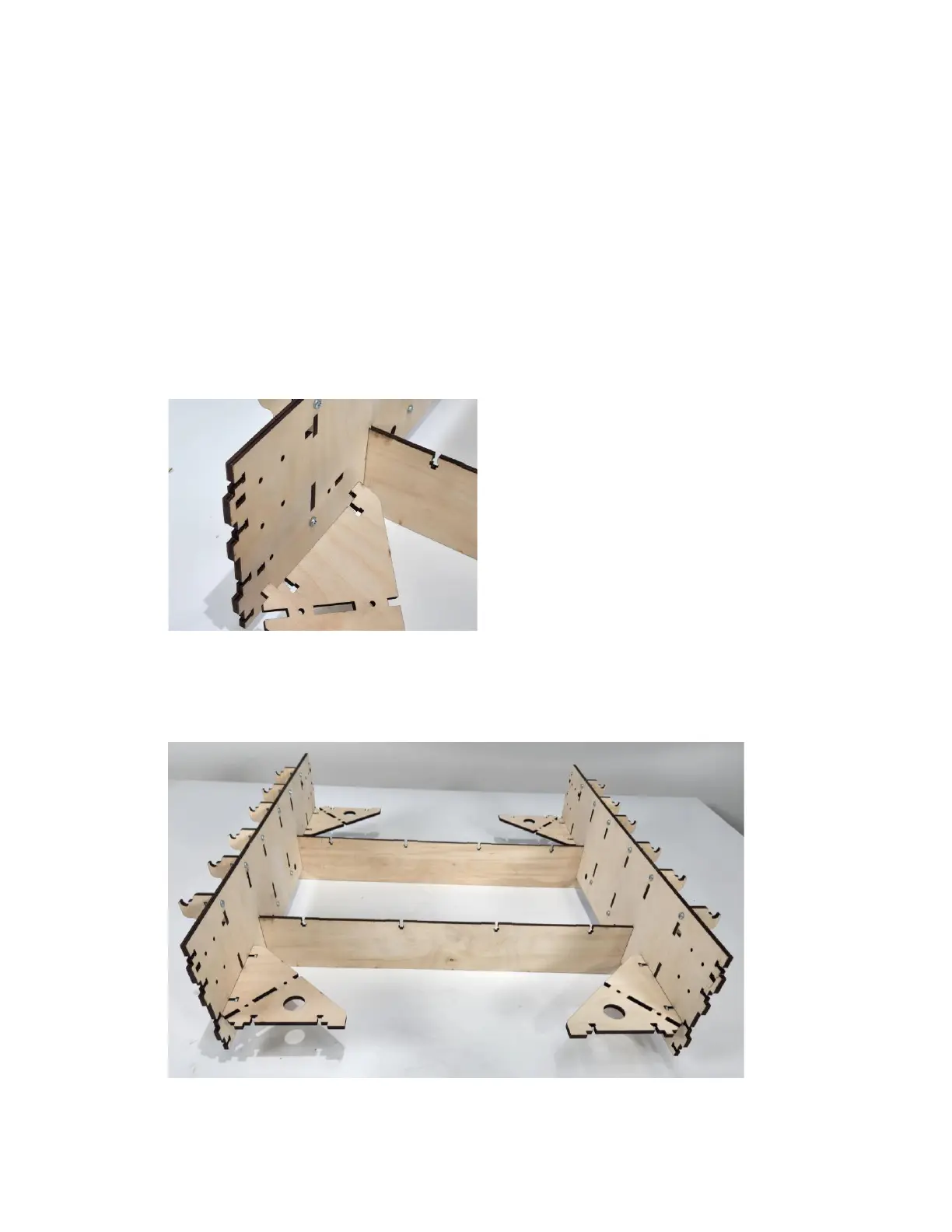

Step 3 Align the tabs of the four Frame Corner Supports
(QX8) with the slots of the Frame Side Support and
secure each with two M4 X 16 Machine Screws and
Nuts. Make sure the hole in the Frame Corner
Support is oriented toward the end of the X Frame
as shown.
