BobsCNC QUANTUM MINI - Page 23

22

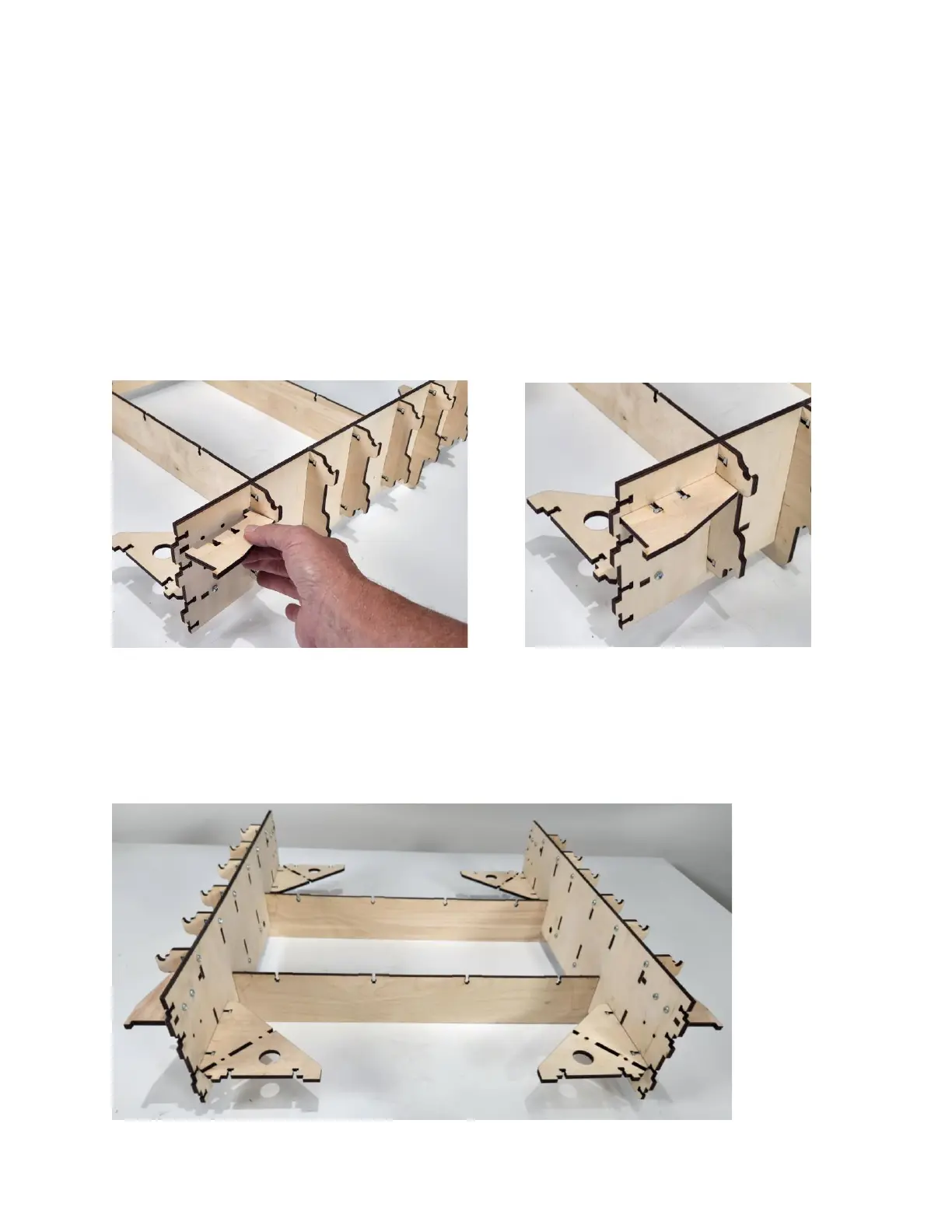

Step 4 Insert the tabs of the each of the Belt Support
(QX11) into the slots located at each end of
the X Assembly and secure with two M4 x 16
Machine Screws and Nuts for each.
