BobsCNC QUANTUM MINI - Major Assembly Procedures; Z Spindle Mount Assembly Guide

23

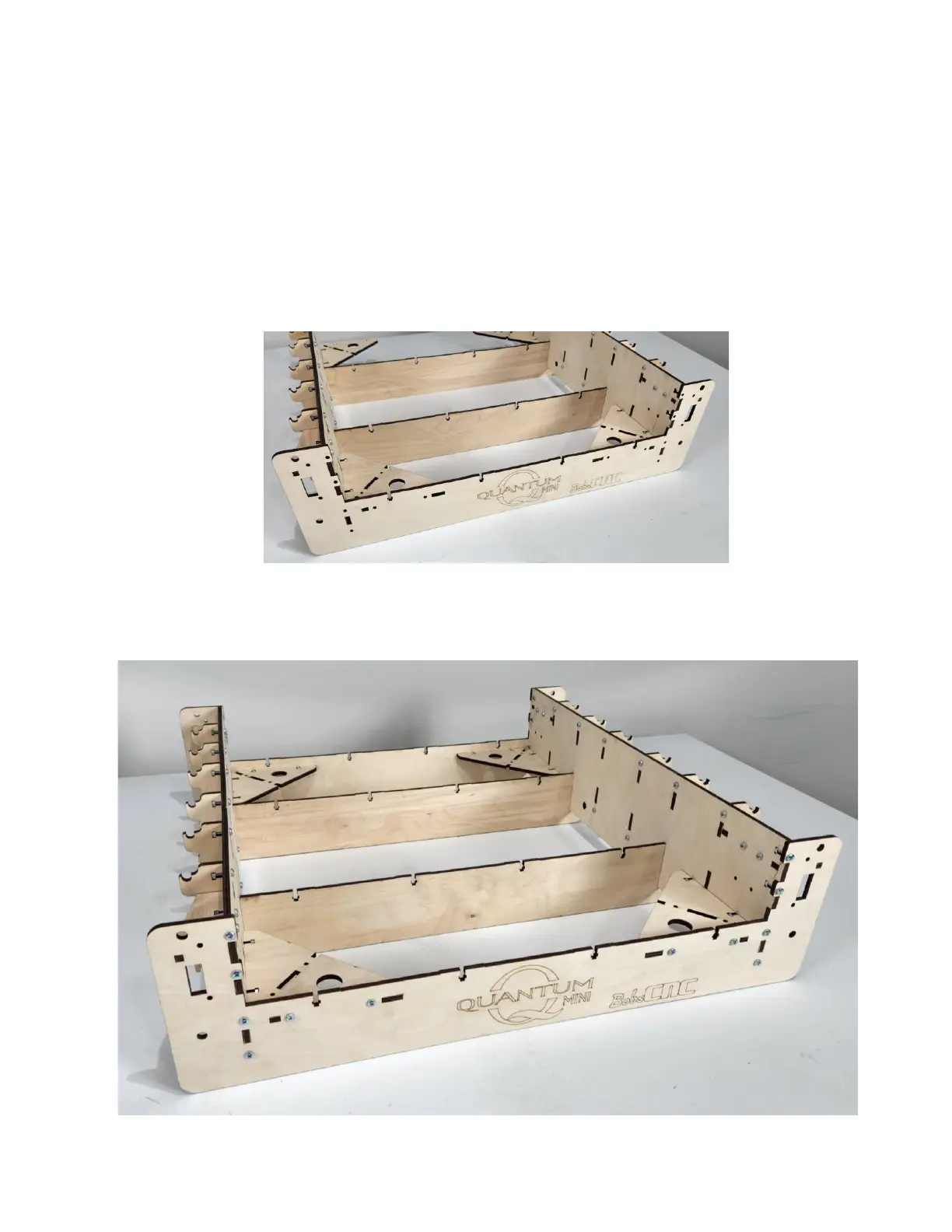

Step 5 Align the tabs of the X Frame Assembly into
the slots of the Frame End Support (QX6M)
and secure with twelve M4 X 16 Machine
Screws and Nuts for each end as shown.
