BobsCNC QUANTUM MINI User Manual

28

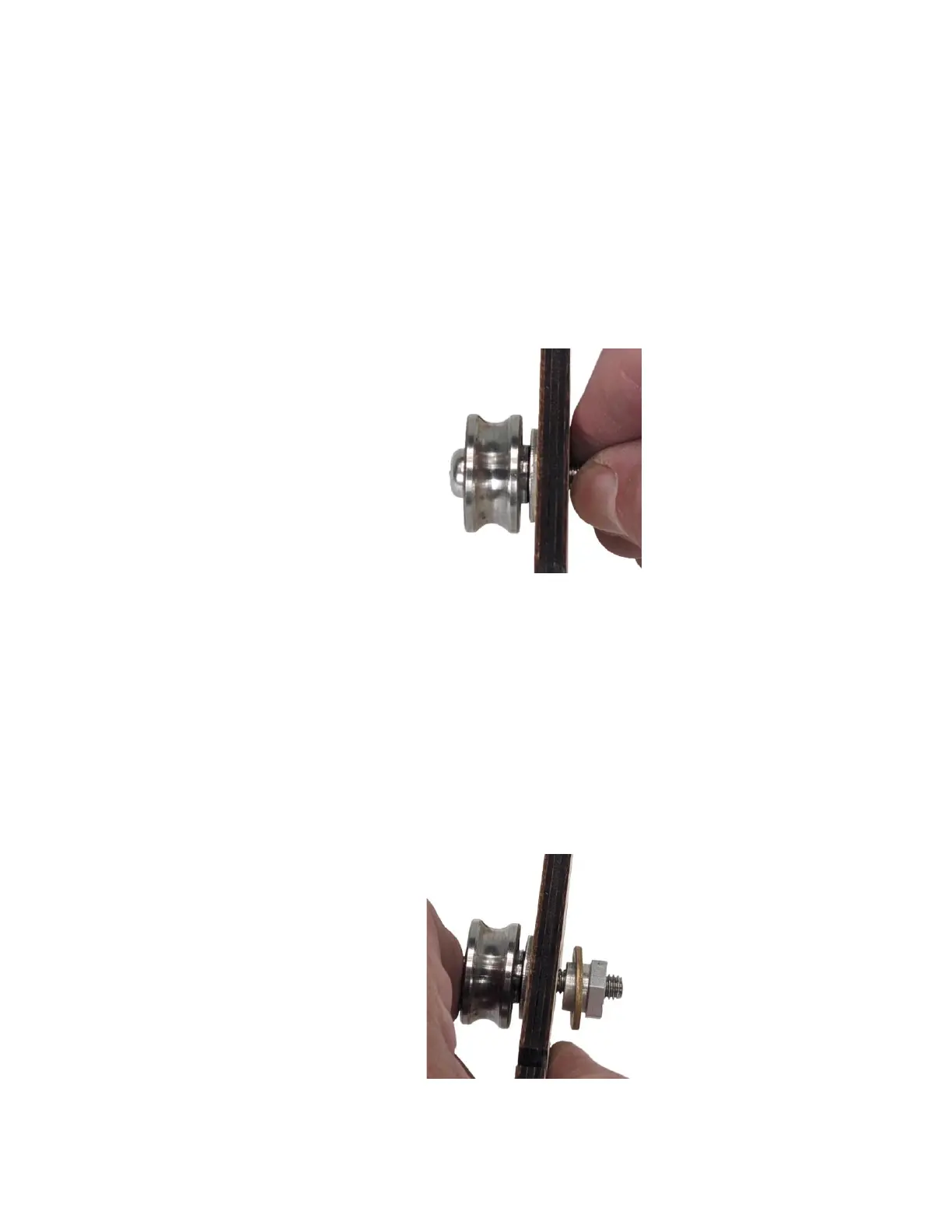

Step 1a Insert the bearing Assemblies through
the mounting holes in the Back Frame
(QZ1) with the Bearing Fender Washer
(H42) against the wood and the Hub
against the Bearing Fender Washer as
shown.
Step 1b Slide the Eccentric Washer (H41) over
the Eccentric Spacer (H40) inserting the
shaft of the M6 X 35 Machine Screw
(H95)through the Eccentric Spacer as
shown.
