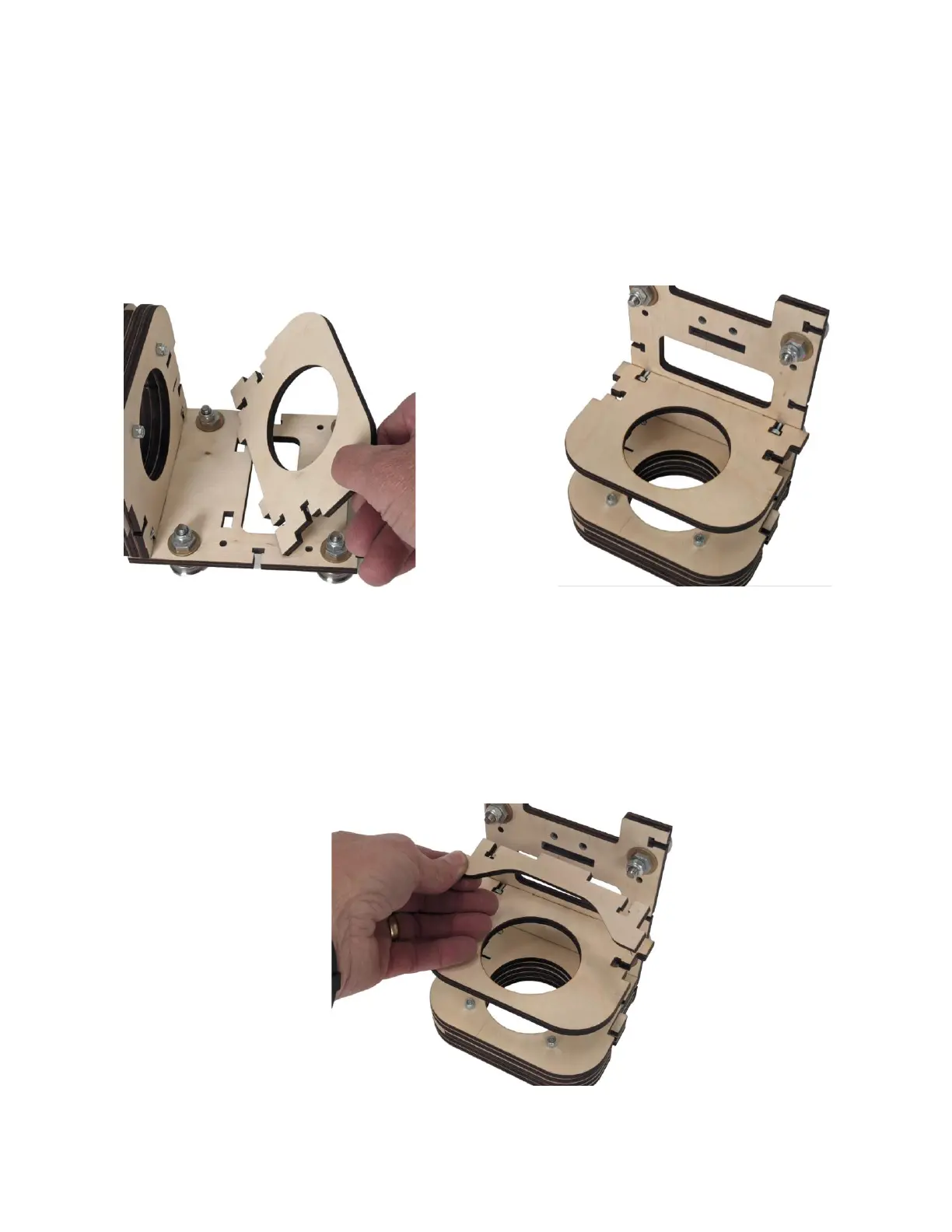

Step 2h Align the tabs of the Top Spindle Mount (QZ4)
with the slots in the Back Plate Assembly and
secure with two M4 Machine Screws X 16 and
Nuts as shown.
Step 2i Align the tabs of the Top Brace (QZ3) with the
slots in the Back Plate Assembly and secure
with two M4 X 16 Machine Screws and Nuts as
shown
To Next Page
