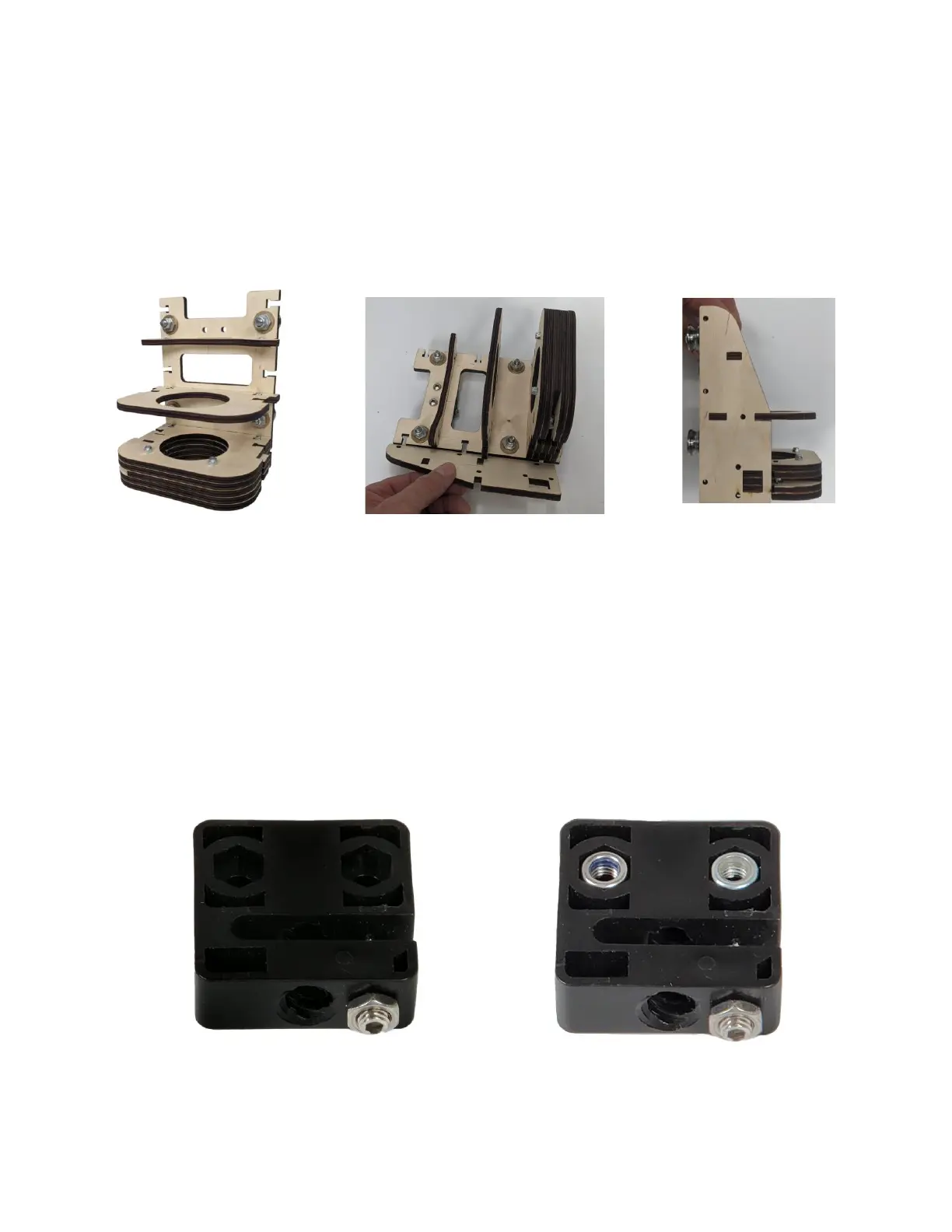

Step 2j Align the tabs of the Router Mount Assembly
with the slots in the Side Support (QZ2) and
secure with six M4 x 16 Machine Screws and
Nuts. Repeat to install the other Side Support.
Step 2k Prepare the ACME Nut Assembly (ZD12) by
inserting two M5 Lock Nuts (H49) in the ACME
Block. Make sure the nylon washer on the top
of the Lock Nut is visible after inserting.
