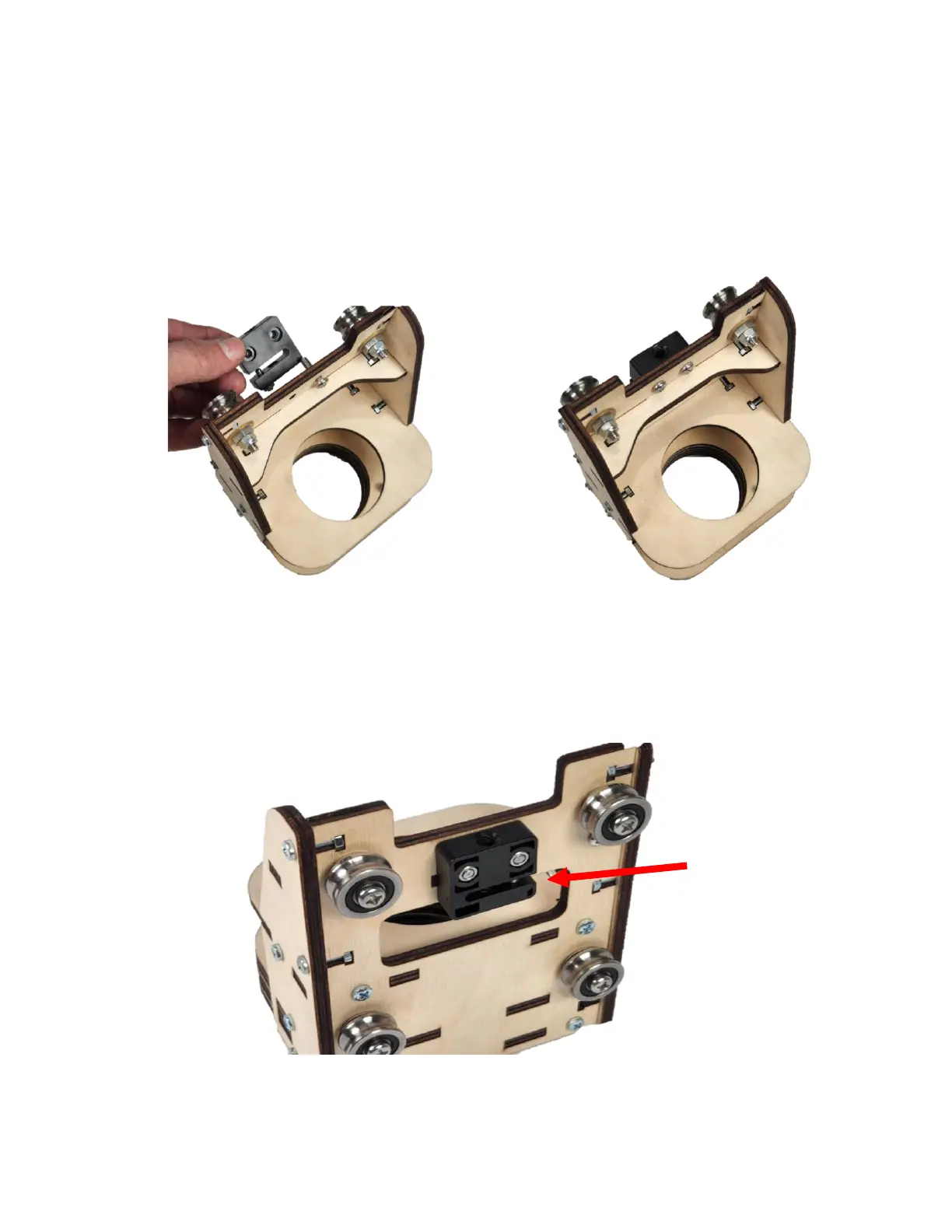

Step 2l Insert two M5 x 18 Machine Screws (H97)
through the Router Mount Assembly as shown
and secure the ACME Nut Assembly in place
as shown.
The slot in the ACME Nut must be oriented on the bottom as shown.
