BobsCNC QUANTUM MINI User Manual

43

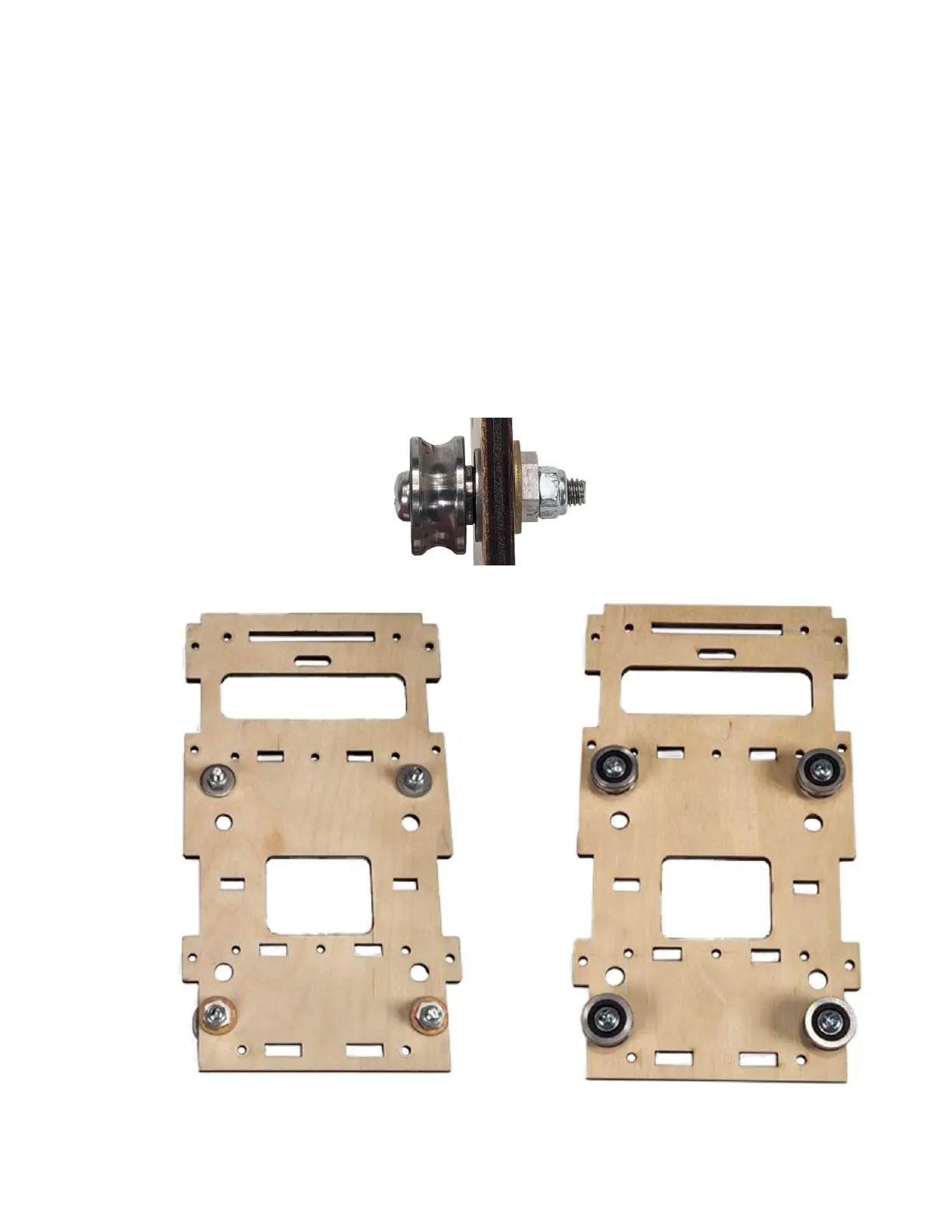

Step 1b
Install the two lower SG20U Bearings for the Y
Carriage Assembly as shown. The assembly order for
the Lower Bearings: M6 x 35 Machine Screw (H95),
SG20U Bearing (H44) hub facing toward the Bearing
Fender Washer (H42), Plywood, Eccentric Washer
(H41), Eccentric Spacer (H40) secured with a M6
Lock Nut (H18).
Carriage Frame Front View
Carriage Frame Rear View
