Step 2 Building the Y Carriage Assembly

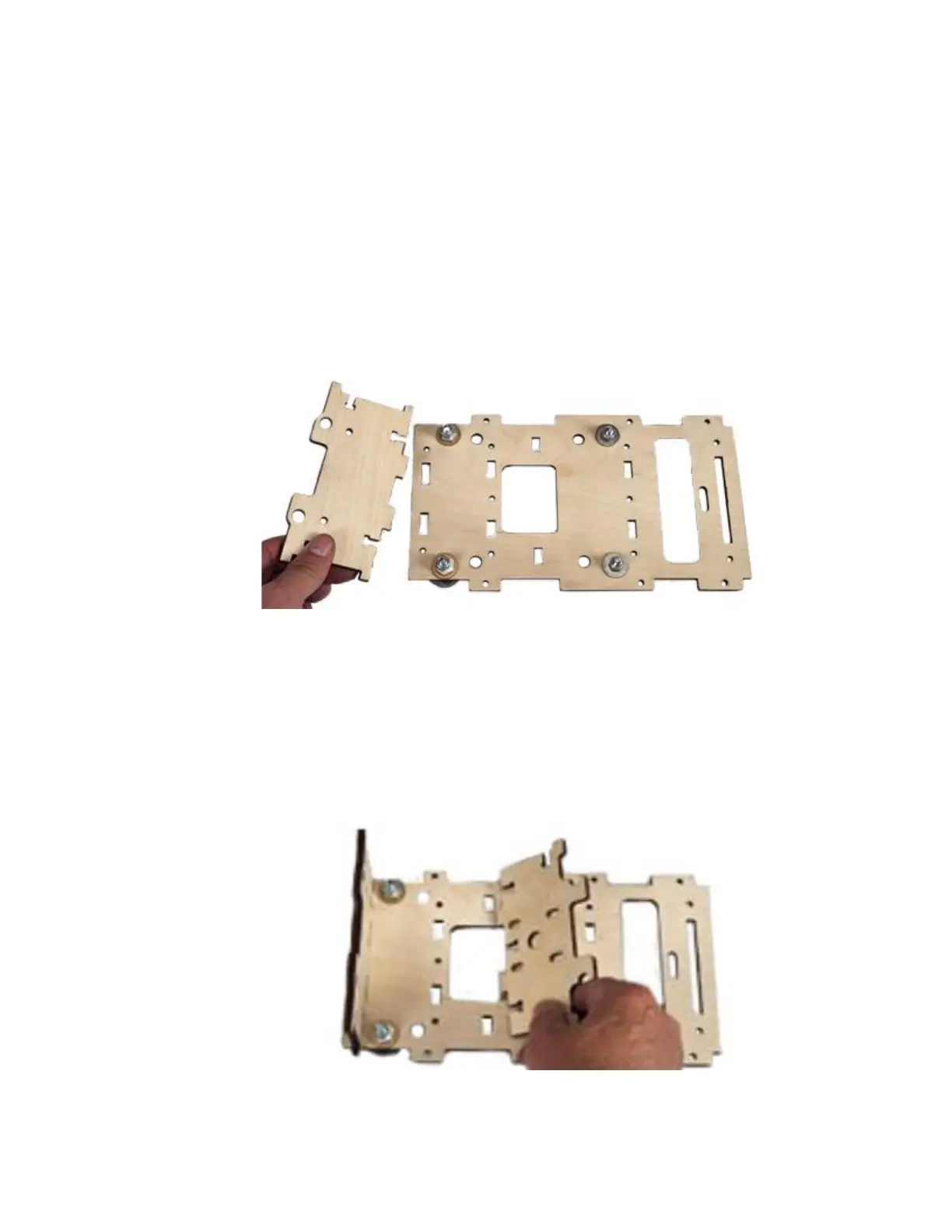

Step 2a With the Bearings facing down, align the tabs

of the Carriage Bottom Support (QY7) with the

slots at the bottom of the Carriage Frame

(QY4) and secure with two M4 x 16 Machine

Screws and Nuts.

Step 2b Align the tabs of the Outer Rail Support (QY8)

with the slots located below the opening in

the Carriage Frame Assembly and secure with

three M4 x 16 Machine Screws and Nuts.
