BobsCNC QUANTUM MINI User Manual

45

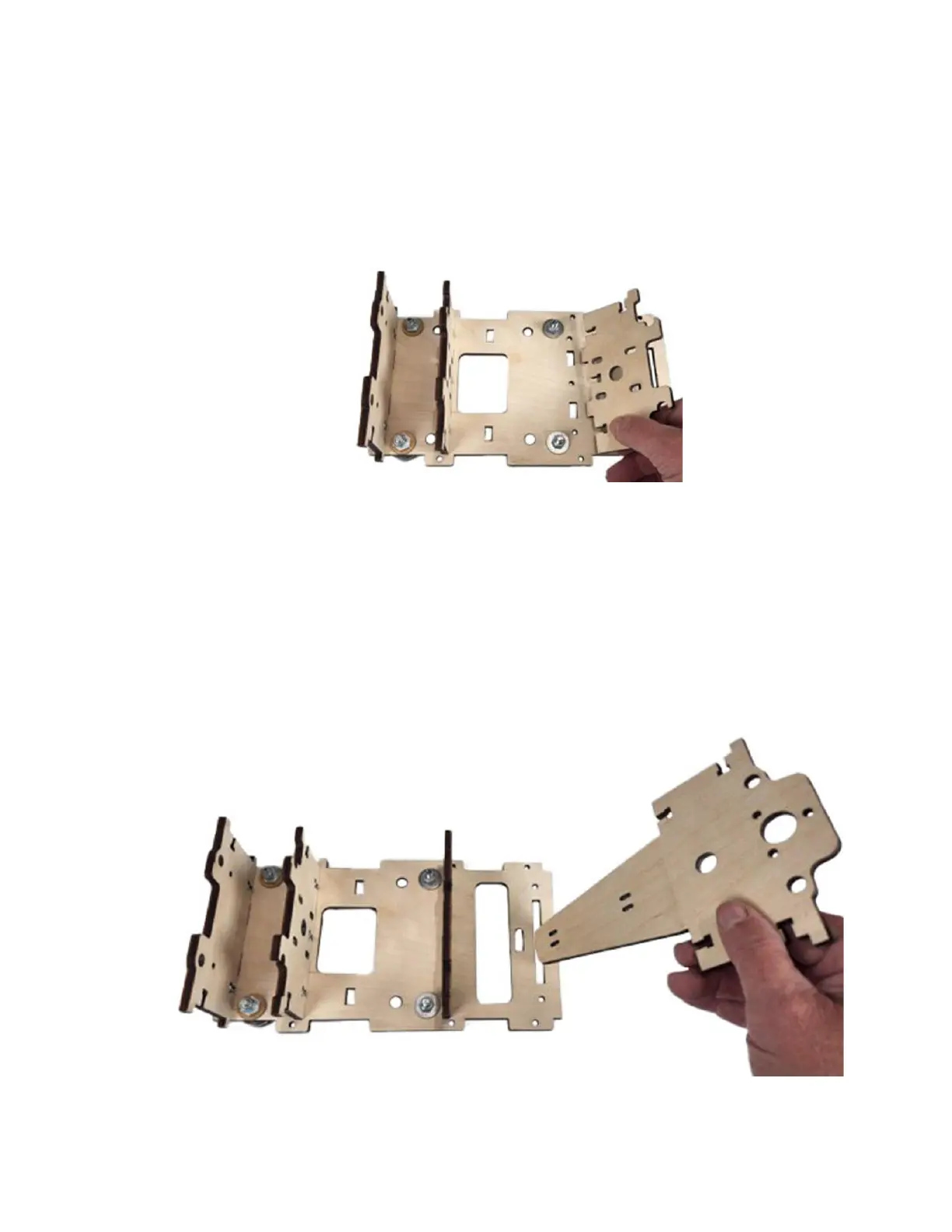

Step 2c Align the tabs of the remaining Outer Rail
Support (QY8) with the next set of slots above
in the Carriage Frame Assembly and secure
with three M4 x 16 Machine Screws and Nuts.
Step 2d Slide the narrow tongue of the Carriage Top
Support (QY2) through the long narrow slot at
the top of the Carriage Frame Assembly, as
shown. Secure with two M4 x 16 Machine
Screws and Nuts.
