46

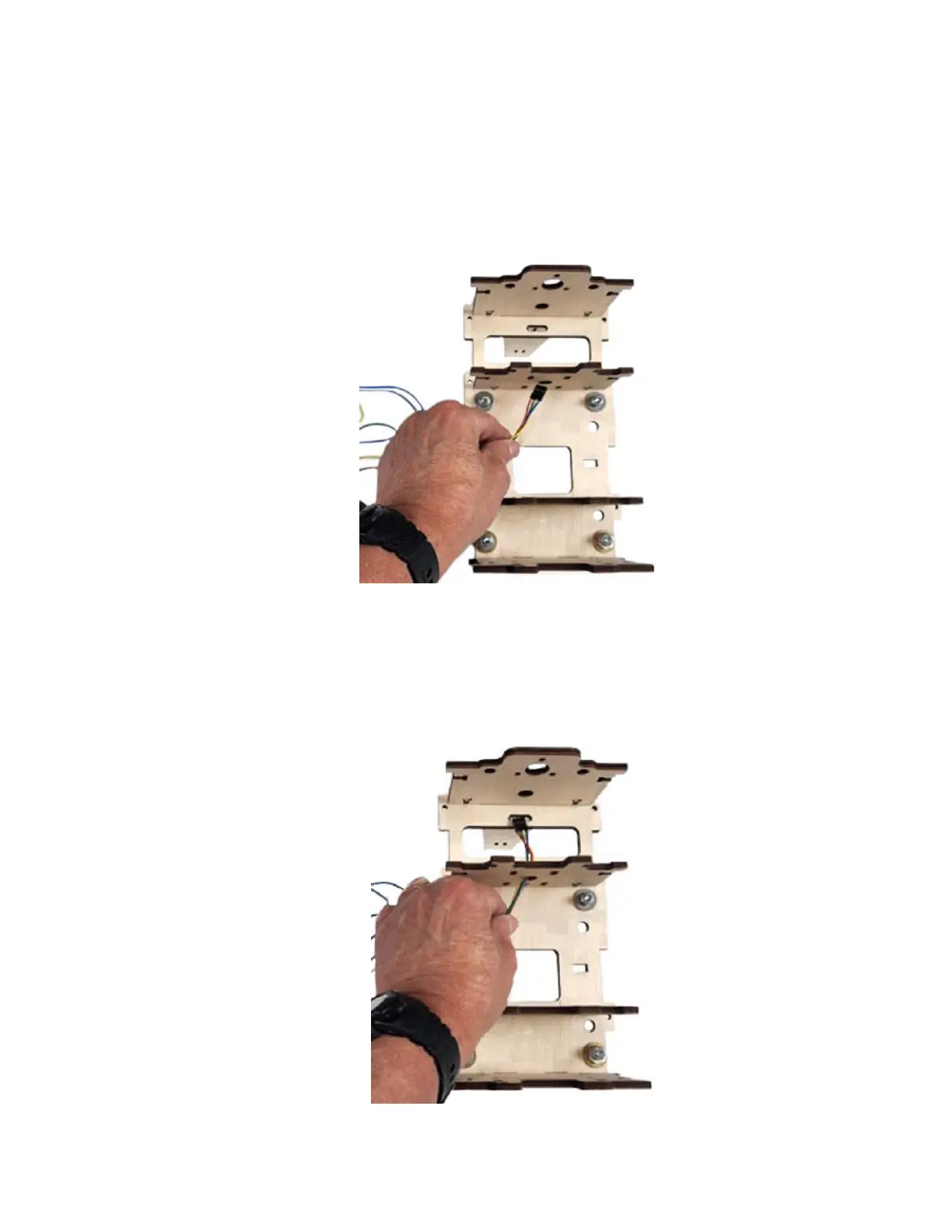

Step 2e Carefully thread the Dupont Connector and
the Stepper Motors wires of the Z Stepper
Motor Mount Assembly through the upper
Outer Rail Support.
Continue threading the wires through the
rectangular slot just beneath the Carriage Top
Support.
